Detailed Product Description

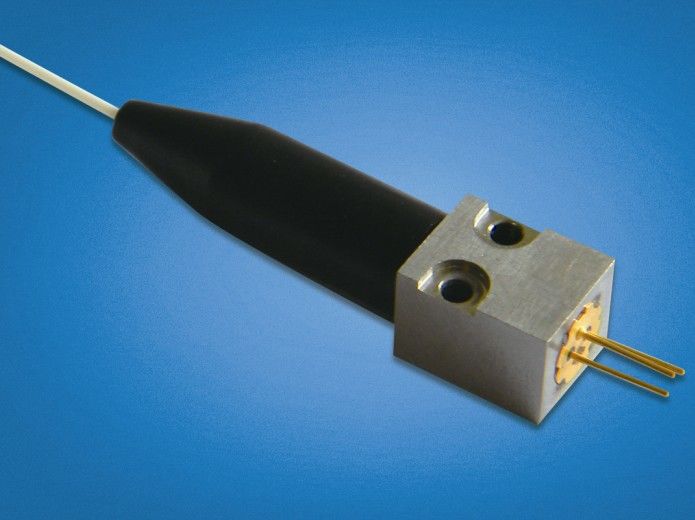

Key Features of Blue Ray Laser Diode K41S03F-0.1W :
-
100mWoutput power
-
60µm fiber core diameter
-
0.22NA
-
405nm wavelength
Applications of Blue Ray Laser Diode K41S03F-0.1W :
-
Printing
-
Aiming Beam
-
Biochemical Analysis
|
Specifications(25℃)
|
Symbol
|
Unit
|
K41S03F-0.1W
|
Optical data
|
CW-output power
|
Po
|
mW
|
100
|
|
Center wavelength(1)
|
lc
|
nm
|
405
|
|
Tolerance of l
|
-
|
nm
|
±5
|
|
Spectral width (FWHM)
|
△l
|
nm
|
<3
|
|
Temperature drift of l
|
-
|
nm/℃
|
~0.2
|
|
Fiber data(2)
|
Fiber core diameter
|
Wc
|
µm
|
60
|
|
Numerical aperture
|
NA
|
-
|
0.22
|
|
Fiber connector
|
-
|
-
|
SMA-905
|
|
Electrical data
|
Operation current
|
Iop
|
mA
|
120
|
|
Threshold current
|
Ith
|
mA
|
35
|
|
Slope efficiency
|
ηD
|
mW/mA
|
1.0
|
|
Operation voltage
|
Vop
|
V
|
5±0.5
|
|
Reverse voltage
|
Vre
|
V
|
5
|
|
Other specifications
|
Operation temperature
|
Top
|
℃
|
10~30
|
|
Storage temperature
|
Tst
|
℃
|
-20~+80
|
|
Expected lifetime
|
MTBF
|
h
|
>10, 000
|
|
Dimensions
(fiber and connector not included)
|
-
|
mm
|
Φ7.4×34.0
|
|
Lead soldering temperature
|
Tis
|
℃
|
260(10 sec.)
|
-
650nm wavelength is also available.
-
Other fibers available.
