Detailed Product Description

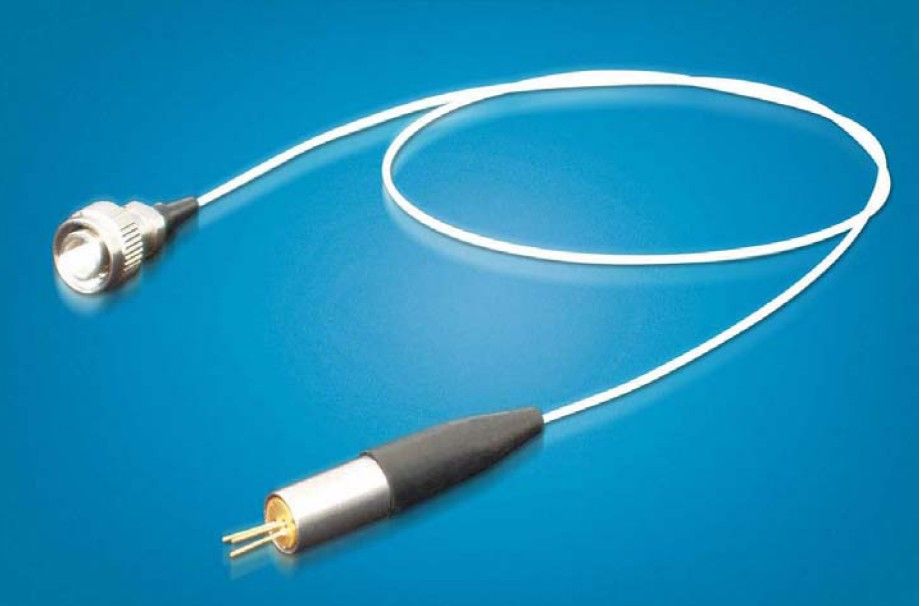

660nm 20mW red fiber coupled laser module
Features of 660nm 50mW red laser diode module:
- 660nm laser diode
- 20mW output power
- 4 micron fiber core diameter
- 0.13NA
- Pigtailed output
APPLICATIONS:
Printing
Aiming beam
|
Specifications25
|
Symbol
|
Unit
|
K63S03F-0.02W-S
|
|
Optical data
|
CW-output power
|
Po
|
mW
|
20
|
|
|
Center wavelength
|
λc
|
nm
|
660
|
|
|
Tolerance of λ
|
-
|
nm
|
±5
|
|
|
Spectral width (FWHM)
|
λ
|
nm
|
<3
|
|
|
Temperature drift of λ
|
-
|
nm/
|
~0.2
|
|
|
Fiber data (2)
|
Fiber core diameter
|
Wc
|
µm
|
4
|
|
|
Numerical aperture
|
NA
|
-
|
0.13
|
|
|
Fiber connector
|
-
|
-
|
SMA-905
|
|
|
Electrical data
|
Operation current
|
Iop
|
mA
|
150
|
|
|
Threshold current
|
Ith
|
mA
|
55
|
|
|
Slope efficiency
|
ηD
|
mW/mA
|
0.3
|
|
|
Operation voltage
|
Vop
|
V
|
2.2~2.4
|
|
|
Reverse voltage
|
Vre
|
V
|
2
|
|
|
PD data
|
Current
|
Imo
|
µA
|
100~400
|
|
|
Other specifications
|
Operation temperature
|
Top
|
|
10~30
|
|
|
Storage temperature
|
Tst
|
|
-20~+80
|
|
|
Expected lifetime
|
MTBF
|
h
|
>5, 000
|
|
|
Dimensions
(fiber and connector not included)
|
-
|
mm
|
Φ7.4×34.0
|
|
|
Lead soldering temperature
|
Tis
|
|
260(10 sec.)
|
|
(1) Other fibers available.
