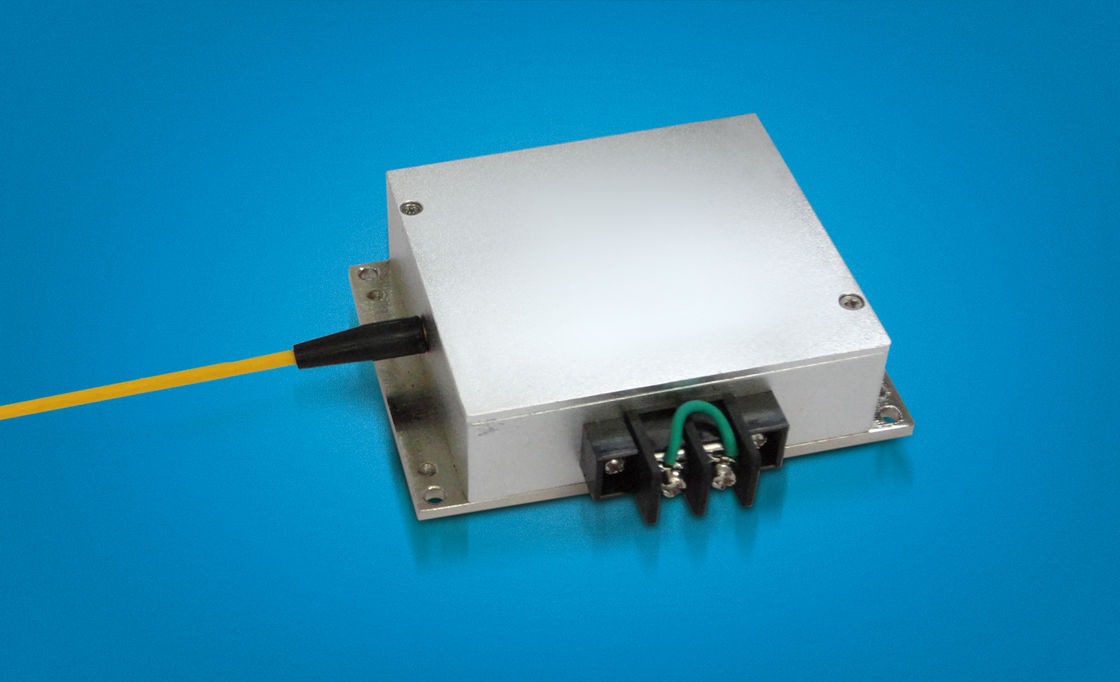

808 nm Laser Diode K81S02M-15.00W

Specifications(25℃)

Symbol

Unit

K81D06M-10.00W

K81D06M-15.00W

Optical data

CW-output power⁽¹⁾

P_O

W

10

15

Center wavelength

l_c

nm

808

Tolerance of l

-

nm

±3, ±10

Temperature drift of l

-

nm/℃

~0.3

Fiber data⁽²⁾

Fiber core diameter

W_c

µm

375

Numerical aperture

NA

-

0.22

Fiber connector

-

-

SMA-905

Electrical data

Operation current

I_op

A

2.6

3.0

Threshold current

I_th

A

0.4

Conversion efficiency

η

%

40

Slope efficiency

η_D

W/A

4.7

6.6

Operation voltage

V_op

V

~10.0

~14.0

Reverse voltage

V_re

V

~10.0

~14.0

Others

Operation temperature

T_op

℃

10~30

Storage temperature

T_st

℃

-20~+80

Lifetime

MTBF

h

>10, 000

Dimensions

(fiber and connector not included)

-

mm

123×80×25

Weight

-

g

~600
