Detailed Product Description

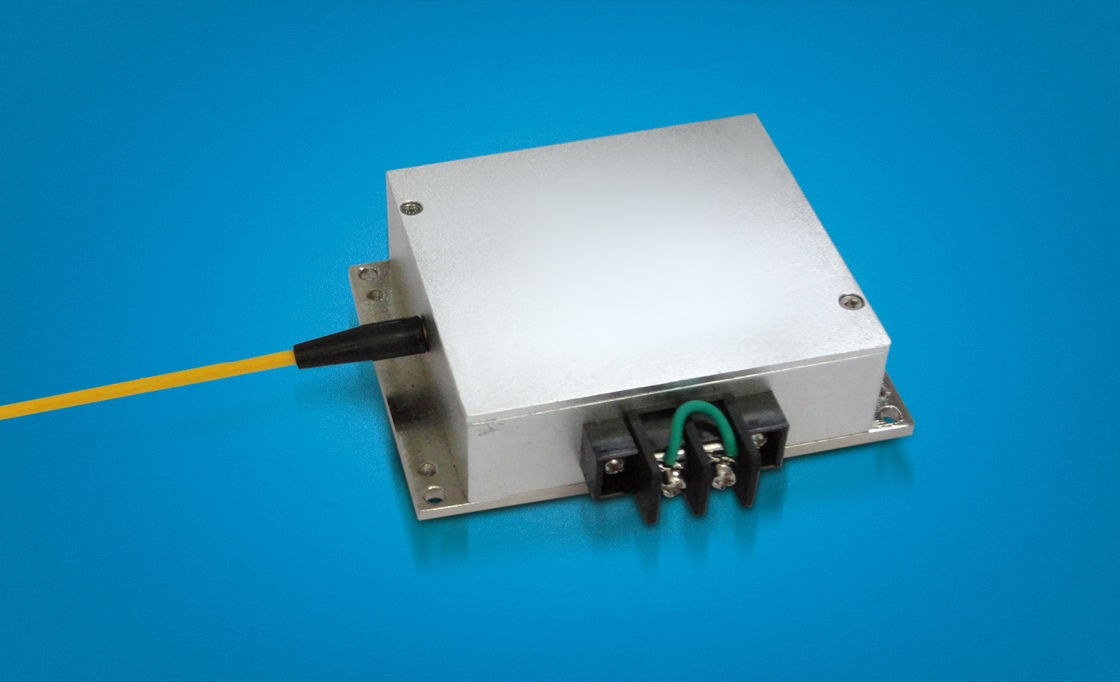

Key Features of 808nm Laser Diode K81S02M-10.00W :
-
10W output power
-
375µm fiber bundle diameter
-
0.22NA
-
808nm wavelength
Applications of 808nm Laser Diode K81S02M-10.00W :
-
Laser pumping
-
Medical use
-
Material processing
|
Specifications(25℃)
|
Symbol
|
Unit
|
K81D06M-10.00W
|
K81D06M-15.00W
|
Optical data
|
CW-output power(1)
|
PO
|
W
|
10
|
15
|
|
Center wavelength
|
lc
|
nm
|
808
|
|
Tolerance of l
|
-
|
nm
|
±3, ±10
|
|
Temperature drift of l
|
-
|
nm/℃
|
~0.3
|
|
Fiber data(2)
|
Fiber core diameter
|
Wc
|
µm
|
375
|
|
Numerical aperture
|
NA
|
-
|
0.22
|
|
Fiber connector
|
-
|
-
|
SMA-905
|
|
Electrical data
|
Operation current
|
Iop
|
A
|
2.6
|
3.0
|
|
Threshold current
|
Ith
|
A
|
0.4
|
|
Conversion efficiency
|
η
|
%
|
40
|
|
Slope efficiency
|
ηD
|
W/A
|
4.7
|
6.6
|
|
Operation voltage
|
Vop
|
V
|
~10.0
|
~14.0
|
|
Reverse voltage
|
Vre
|
V
|
~10.0
|
~14.0
|
|
Others
|
Operation temperature
|
Top
|
℃
|
10~30
|
|
Storage temperature
|
Tst
|
℃
|
-20~+80
|
|
Lifetime
|
MTBF
|
h
|
>10, 000
|
|
Dimensions
(fiber and connector not included)
|
-
|
mm
|
123×80×25
|
|
Weight
|
-
|
g
|
~600
|
-
All LDs inside are connected in serial.
-
Other fibers available.
