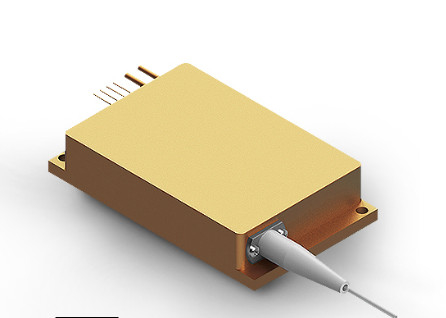

940nm 150w Fiber Coupled Laser For Fiber Laser Pumping

940nm 150w Fiber Coupled Laser For Fiber Laser Pumping

  • 940nm 150w Fiber Coupled Laser For Fiber Laser Pumping
940nm 150w Fiber Coupled Laser For Fiber Laser Pumping
Product Details:
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: K940FN1RN-150.0W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Contact Now
Detailed Product Description
Wavelength: 940nm Laser Type: Fiber Coupled Diode Laser
Feature: 150W Application: Fiber Laser Pumping
Product Name: K940FN1RN-150.0W Name: 150w Fiber Coupled Laser
High Light:

150w fiber coupled laser

,

940nm fiber coupled laser

,

bwt laser diodes



940nm 150w Fiber Coupled Laser For Fiber Laser Pumping


Features:
  •  940nm wavelength
  •  150W output power
  •  106.5µm fiber core diameter
  •  0.22NA
  •  1040nm~1200nm feedback protection
Applications:
  •  Fiber laser pumping



Specifications(25℃) Symbol Unit K808F02MN-15.00W
Minimum Typical Maximum

Parameter





CW-Output Power Po W 150 - -
Center Wavelength λc nm 940±10
Spectral width(FWHM) △​λ nm 6
Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.3 -
Wavelength Shift with △​λ/△A nm/A - 0.6 -
Spot ratio 0.16/0.22
NA % 90 - -

Electrical
Data
Electrical-to-Optical Efficiency PE % - 49 -
Threshold Current Ith A - 1.1 -
Operating Current

Iop A - 13.2 14
Operating Voltage Vop V - 22.4 23.8
Slope Efficiency η W/A - 13 -
Fiber Data Core diameter Dcore µm - 106.5 -
Cladding Diameter Dclad µm - 125 -
Fiber Loose Tubing Diameter - mm 0.9
Numerical Aperture NA - - 0.22 -
Fiber length Lf m - 2 -
Minimum Bending Radius - mm 50 - -
Fiber Termination - - - FF -
Feedback
Isolation
Wavelength Range ​λ nm 1040~1200
Isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage Temperature Tst -20 - 70
Lead Soldering Tempreature Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
