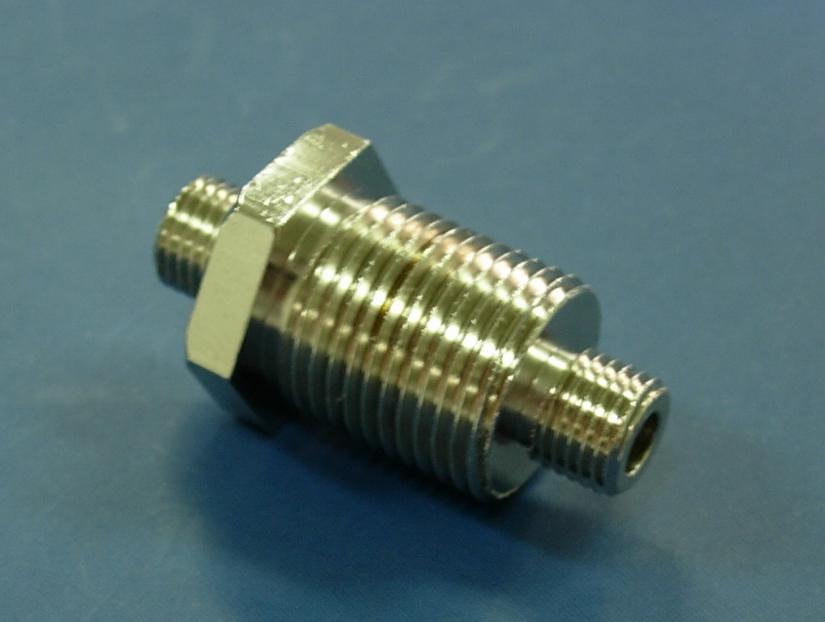

Coupler SMA 905 Connector

All Products

blue laser module (3)

green laser module (0)

red diode laser module (19)

diode laser module (5)

808nm diode laser module (17)

915-980nm diode laser module (26)

diode laser driver (1)

diode laser system (2)

v-groove fiber array (4)

fiber coupler (2)

Detailed Product Description

Specifications
Housing material	Brass , chrome-faced
Length	L=27±0.1mm
Diameter	D=12±0.1mm, S=14±0.1mm
Wavelength⁽¹⁾	600 – 1000 nm
Imaging ratio	1 : 1
Coupling efficiency from 200 mm to 300mm fiber⁽²⁾	> 92 %
Coupling efficiency from 400 mm to 400mm fiber⁽²⁾	> 92 %
Coupling efficiency from 600 mm to 600mm fiber⁽²⁾	> 92 %
Fiber connector	SMA 905
Maximum laser power	30 W (CW)

(1) Customized wavelength.

(2) Neglecting fiber reflection losses, NA (in) ≤ NA (out).
