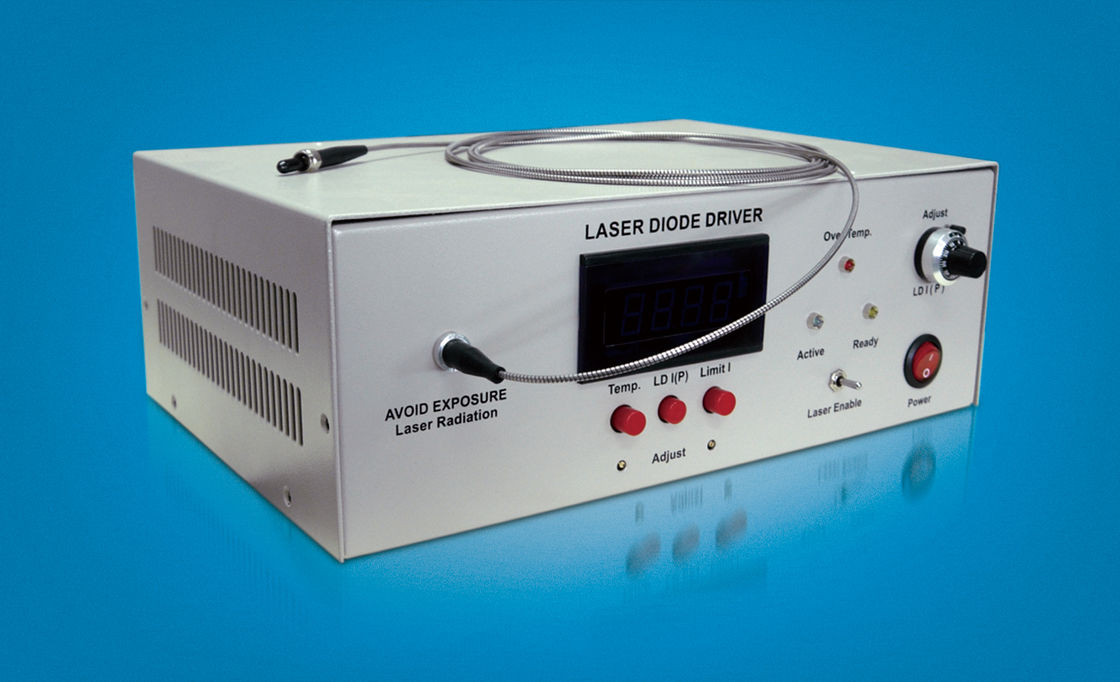

Laser Diode System KS3-11312-xxx-LD No.

Specifications

KS3-11312-xxx-K63S09F-0.40W

KS3-11312-xxx-LD No.

Optical data

CW-output power

400mW

2W, 4W, 5W, 8W, 10W, 15W

20W, 30W, 50W

Center wavelength

635nm

808nm, 915nm, 980nm

Tolerance of l

±10nm

Spectral width (FWHM)

<3nm

Power Stability

±5%

Fiber data

Fiber core diameter

105, 200µm

105, 200, 300, 400µm

105, 200, 300, 400µm

Numerical aperture

0.22

Fiber connector

SMA-905

LD controller data

ControlRange

15~30℃

Accuracy

±1℃

Alarm Setting

15~30℃

Operation mode

CW/QCW

Operation Current

<1A

<10A

<15A

Operation requirements

Operation Temperature

0~40℃

Cooling Requirement

Internal fan. At least 10 cm clearance, both sides

Operation humidity

5-80%

Storage Temperature

-20-55℃

Power supply requirements

Input Power

220 V AC, 50 ~ 60 Hz or AC 90~260 V, 50 ~ 60 Hz

Power Loss

<30W

<100W

<500W

Others

Dimensions (L×W×H)

296×254×115mm

296×254×115mm

420×337×174mm

Weight

<10Kg

<10Kg

<18Kg
