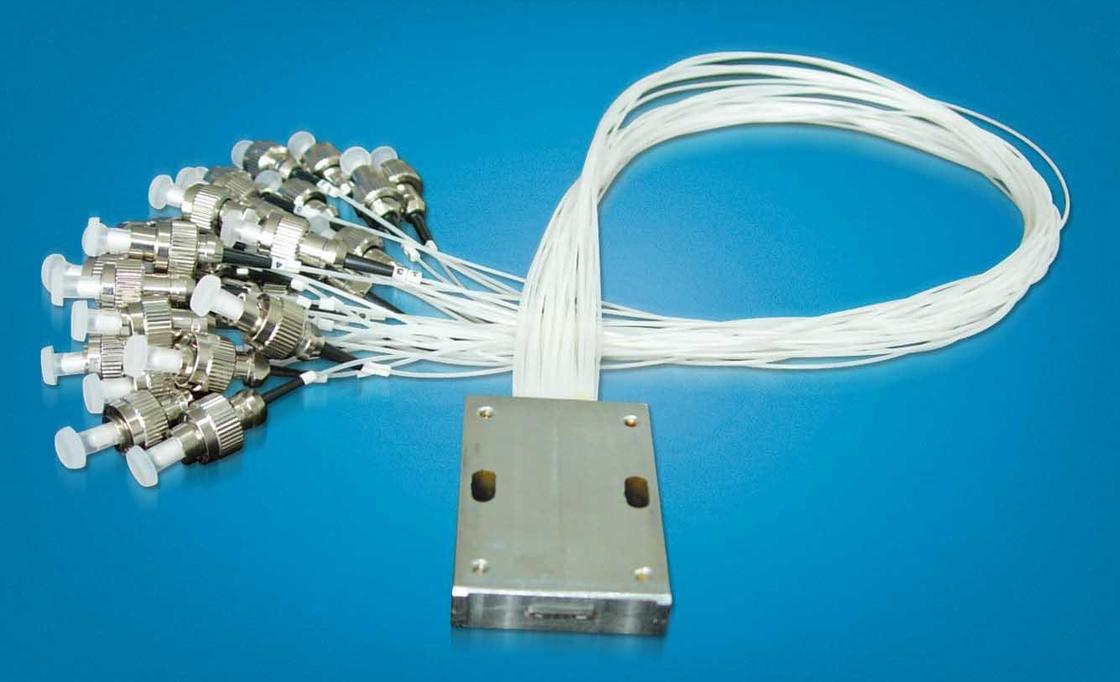

V-groove Fiber Array KCTP-32

Specifications

Unit

KCTP-32

KCTP-16

KCTF-32

KCTF-16

Fiber center interval

µm

125

125

125

125

Horizontal precision of fiber position

µm

≤±2.5

≤±2.5

≤±2.5

≤±2.5

Vertical precision of fiber position

µm

≤±4

≤±4

≤±4

≤±4

Transmissivity

-

>90%

>90%

>90%

>90%

Fiber numbers

-

32

16

32

16

Fiber core diameter

µm

62.5

62.5

5

5

Fiber cladding diameter

-

125

125

125

125

Fiber buffer diameter

µm

250

250

250

250

Fiber jacket diameter

µm

900,

900

900

900

Numerical aperture

-

0.22

0.22

0.11

0.11

Fiber Length^*

m

1

1

1

1

Fiber connector

-

FC, ST, SMA-905

FC, ST, SMA-905

FC, ST, SMA-905

FC, ST, SMA-905
