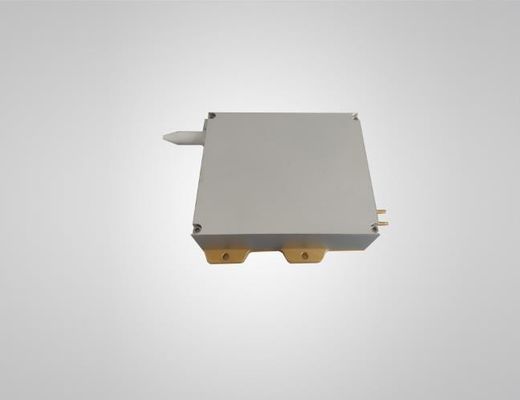

808nm 60W High Power Fiber Coupled Diode Laser

808nm 60W High Power Fiber Coupled Diode Laser

808nm 60W High Power Fiber Coupled Diode Laser

Product Details:

Place of Origin: Beijing China(Mainland)
Brand Name: BWT
Certification: ISO9001
Model Number: K808DN1RN-60.00W

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 200,000/year
Contact Now
Detailed Product Description

 Features:

808nm wavelength

60W output power

106.5μm fiber core diameter

0.22 N.A.



Applications:

DPSS pumping

Medical use

Material processing







Specifications(25℃)



Symbol



Unit



K808DN1RN-60.00W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 60 - -
Center Wavelength λc nm 808±3
Spectral Width (FWHM) △λ nm   6
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A A/℃ - 1 -
Electrical Data Electrical-to-Optical Efficiency PE %   42 -
Threshold current lth A - 0.85 -
Operating current lop A - - 5.5
Operating voltage Vop V - 28.4 29
Slope Efficiency η W/A - 13 -

Fiber Data



Core diameter Dcore μm - 106.5 -
Cladding diameter Dclad μm - 125 -
Buffer diameter Dbuf μm - 250 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 2 -
Fiber Loose Tubing Diameter - μm 1mm PTFE 180cm
Minimum Bending Radius - mm 60 - -
Fiber termination - - - FPT -
Feedback Isolation Back reflection wavelength λ nm 1040-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
