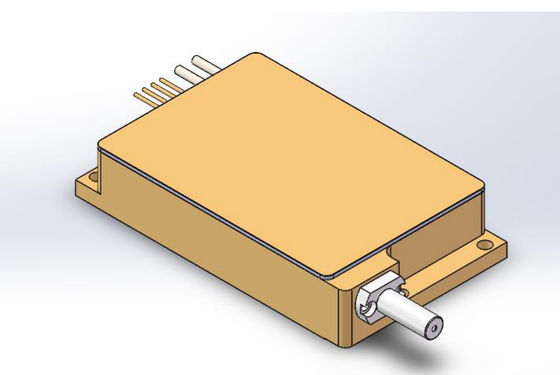

ISO 445nm 30W 3D Printing Fiber Coupled Diode Laser

ISO 445nm 30W 3D Printing Fiber Coupled Diode Laser

MOQ: 1 Piece/Pieces
Delivery Period: 4-8weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Model Number
K445HA5FN-30.00W
Certification:
ISO
Wavelength:
445nm
Laser Type:
Diode Laser
Feature:
30W
Function:
3D Pringting
Name:
ISO 445nm 30W 3D Printing Fiber Coupled Diode Laser
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
4-8weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

445nm Fiber Coupled Diode Laser

,

30w Fiber Coupled Diode Laser

,

3D Printing fiber coupled laser

Product Description



ISO 445nm 30W 3D Printing Fiber Coupled Diode Laser


Features:
  •  445nm wavelength
  •  30W output power
  •  105µm fiber core diameter
  •  0.22NA
Applications:
  •  Material processing
  •  3D printing
Specifications(25℃) Symbol Unit K808F02MN-15.00W
Minimum Typical Maximum
Optical Data
(1)
CW-Output Power Po mW 30 - -
Center Wavelength λc nm 445±20
Spectral width(FWHM) △​λ nm 6

Electrical
Data
Electrical-to-Optical Efficiency PE % - 20 -
Threshold Current Ith A - 0.4 -
Operating Current

Iop A - - 3.5
Operating Voltage Vop V - 0.3 45
Slope Efficiency η W/A - 10 -
Fiber Data Core diameter Dcore µm - 105 -
Numerical Aperture NA - - 0.22 -
Fiber length Lf m - 3.0 -
Connector - - - SMA905 -
Minimum Bending Radius - mm 50 - -
Fiber Loose Tubing Diameter
- - -3mm Stainless Steel
Others ESD Vesd V - - 500
Storage Temperature Tst -20 - 70
Lead Soldering Tempreature Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
