| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

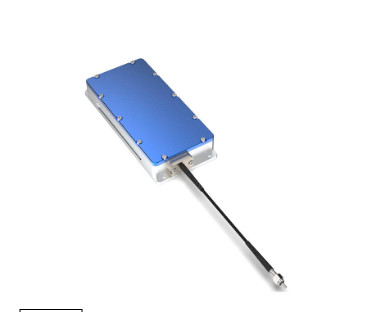

445nm 30w Detachable High Power Diode Laser For Medical Use
Laser additive reproduction
| Specifications(25℃) | Symbol | Unit | K445FMKFN-50.00WWN1N-20022R55ESM | |||
| Minimum | Typical | Maximum | ||||
|
Optical Data
(1)
|
CW-Output Power | Po | mW | 50 | - | - |
| Center Wavelength | λc | nm | 445±10 | |||
| Spectral width(FWHM) | △λ | nm | - | 5 | - | |
|
Electrical
Data
|
Electrical-to-Optical Efficiency | PE | % | - | 25 | - |
| Threshold Current | Ith | A | - | 0.3 | - | |
| Operating Current
|
Iop | A | - | 3.5 | - | |
| Operating Voltage | Vop | V | - | 60 | - | |
| Fiber Data | Core diameter | Dcore | µm | - | 200 | - |
| Numerical Aperture | NA | - | - | 0.22 | - | |
| Fiber Length | Lf | m | - | 1 | - | |
| Fiber Termination | - | - | - | SMA905 | - | |
| Minimum Bending Radius | - | mm | 60 | - | - | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage Temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Tempreature | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
|
|
