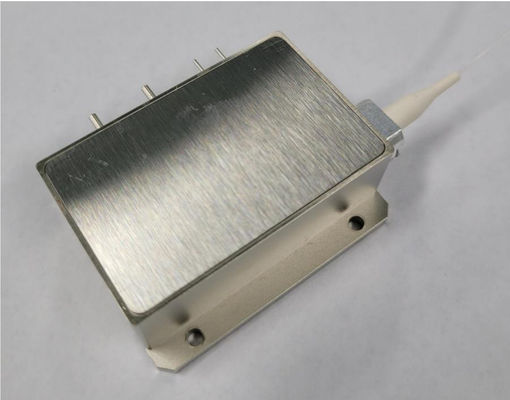

445nm 10w Bwt Iso Certified Fiber Coupled Diode Laser

MOQ:	1 Piece/Pieces
Delivery Period:	4-8weeks
Payment Method:	T/T
Supply Capacity:	100,000/year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

BWT

Certification

ISO9001

Model Number

K445HMTFN-10.00W

Type:

445nm 10W Fiber Coupled Diode Laser

Output Power:

10W

Wavelength:

445nm

Product Name:

K445HMTFN-10.00W

Application:

3D Printing

Minimum Order Quantity:

1 Piece/Pieces

Delivery Time:

4-8weeks

Payment Terms:

T/T

Supply Ability:

100,000/year

Highlight

10w fiber coupled diode laser

iso certified fiber coupled diode laser

bwt 445nm laser diode

Product Description

445nm 10W BWT.Ltd fiber-coupled diode laser iso certified

Features:

445nm wavelength
10W output power
105 µm fiber core diameter
0.22NA

Applications:

Scientific research
Material processing
3D printing

Specifications(25℃)		Symbol	Unit	K445HMTFN-10.00W
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Parameter	Threshold Current	CW-Output Power	Po	W	10	-
	Center Wavelength	λc	nm	445±10
	Electrical-to-Optical Efficiency	PE	%	-	25	-
	Operating Current	Iop	A	-	3.5	4
	Ith	A	-	-	0.4	-
	Operating Voltage	Iop	A	-	13	15
Fiber Data	Core diameter	Dcore	µm	-	105	-
	Cladding Diameter	Dclad	µm	-	125	-
	Fiber Loose Tubing Diameter	-	mm	3mm Stainless Steel
	Numerical Aperture	NA	-	-	0.22	-
	Total Fiber length	Lf	m	-	1.0	-
	Minimum Bending Radius	-	mm	50	-	-
	Fiber Termination	-	-	SMA905		-
Others	ESD	Vesd	V	-	-	500
	Storage Temperature	Tst	℃	-20	-	70
	Lead Soldering Tempreature	Tls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating case temperature	Top	℃	15	-	30
	Relative Humidity	RH	%	15	-	75
