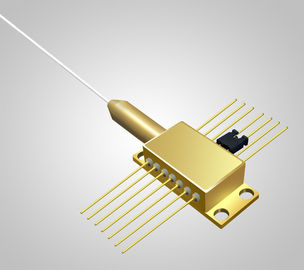

785nm 600mW Wavelength-Stabilized Fiber Coupled Diode Laser

785nm 600mW Wavelength-Stabilized Fiber Coupled Diode Laser

785nm 600mW Wavelength-Stabilized Fiber Coupled Diode Laser

Product Details:

Place of Origin: Beijing China(Mainland)
Brand Name: BWT
Certification: ISO9001
Model Number: K785AFLFN-0.600W

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Contact Now
Detailed Product Description
Product Name: 600mW Laser Module Output Power: 600mW
Wavelength: 785nm Fiber Bundle Diameter: 105µm
Numerical Aperture: 0.22N.A Application: Medical Use,Biochemical Analysis
High Light:

35nm diode laser

,

red laser module

Features:

600mW output power 

785nm wavelength 

105µm fiber core diameter 

Narrow Bandwidth △λ<0.12nm 

0.22N.A.



Applications:

Spectroscopy 

Sensing 

Medical 







Specifications(25℃)



Symbol



Unit



K785AFLFN-0.600W

Minimum Typical Maximum
Optical Data CW-Output Power Po mW 600 - -
Center Wavelength λc nm 785±0.5
Spectral Width (FWHM) △λ nm - <0.12 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.01 -
Wavelength Shift with Current △λ/△A nm/A   0.03
Electrical Data Electrical-to-Optical Efficiency PE %   30 -
Threshold current lth A - 0.4 -
Operating current lop A - 1.1 1.5
Operating voltage Vop V - 1.8 2.2
Slope Efficiency η W/A - 0.9 -

Fiber Data



Core diameter Dcore μm - 105 -
Cladding diameter Dclad μm - 125 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 1.0 -
Fiber Loose Tubing Diameter - mm 0.9mm PTFF
Minimum Bending Radius - mm 50 - -
Fiber termination - - None
PD Data Current Imo µA 50 - 500
Thermistor - Rt (K Ω)/β(25℃) - 10±3%/3477 -
TEC Data Max. Current Itec A - - 2.2
Max. Voltage Vtec V - - 8.7
Others ESD Vesd V - - 500
Storage temperature Tst -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
