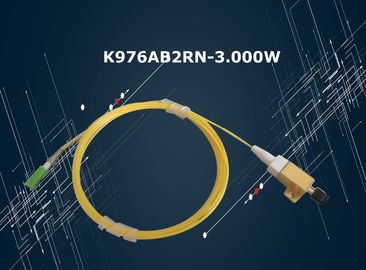

976nm 3W Narrow Linewidth Wavelength Stabilized Laser Diode 105µm Fiber Core

976nm 3W Narrow Linewidth Wavelength Stabilized Laser Diode 105µm Fiber Core

976nm 3W Narrow Linewidth Wavelength Stabilized Laser Diode 105µm Fiber Core

Product Details:

Place of Origin: Beijing
Brand Name: BWT
Certification: ISO9001
Model Number: K976AB2RN-3.000W

Payment & Shipping Terms:

Minimum Order Quantity: 1/piece
Price: -
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 200,000/year
Contact Now
Detailed Product Description

Features:

976nm wavelength

3W output power

105µm fiber core diameter

0.22N.A.

Narrow bandwidth △λ≤0.7nm

1020nm-1200nm feedback protection





Applications:

Fiber laser pumping



Specifications(25℃)



Symbol



Unit



K976AB2RN-3.000W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 3 - -
Center Wavelength λc nm 915±0.5
Spectral Width (FWHM) △λ nm <0.7
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.02 -
Wavelength Shift with Current △λ/△A A/℃ - 0.03 -
Electrical Data Electrical-to-Optical Efficiency PE %   50 -
Threshold current lth A - 0.9 -
Operating current lop A - 4 5
Operating voltage Vop V - 1.6 1.8
Slope Efficiency η W/A - 1 -

Fiber Data



Core diameter Dcore μm - 105 -
Cladding diameter Dclad μm - 125 -
Buffer diameter Dbuf μm - 245 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 1 -
Fiber Loose Tubing Diameter - μm 0.9mm PVC 15cm
Minimum Bending Radius - mm 50 - -
Fiber termination - - - None -
Feedback Isolation Back reflection wavelength λ nm 1020-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -40 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 20 - 30
Relative Humidity RH % 15 - 85
