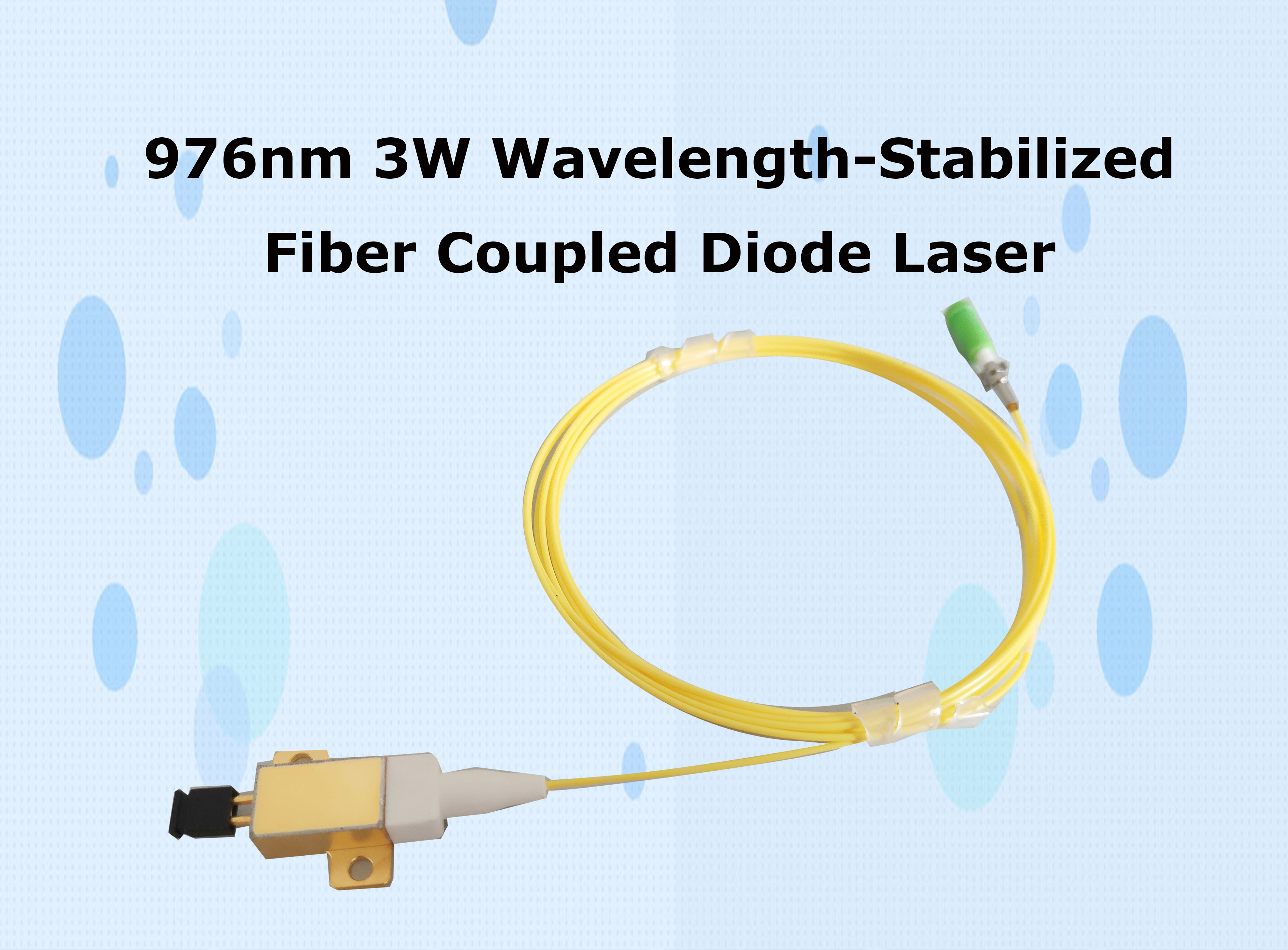

976nm 3W Wavelength-Stabilized Fiber Coupled Diode Laser

976nm 3W Wavelength-Stabilized Fiber Coupled Diode Laser

MOQ: 1 Piece/Pieces
Delivery Period: 4-8weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K976AB2RN-3.000W
Output Power:
3W
Wavelength:
976nm
Fiber Bundle Diameter:
105µm
Numerical Aperture:
0.22NA
Application:
Laser Pumping,Scientific,Medical Use
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
4-8weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

high power laser diode module

,

laser diode modules

Product Description

Features:

976nm wavelength

3W output power

105µm fiber core diameter

0.22N.A.

Narrow bandwidth △λ≤0.7nm

1020nm-1200nm feedback protection



Applications:

Fiber laser pumping





Specifications(25℃)



Symbol



Unit



K976AB2RN-3.000W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 3 - -
Center Wavelength λc nm 976±0.5
Spectral Width (FWHM) △λ nm <0.7
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.02 -
Wavelength Shift with Current △λ/△A nm/A - 0.03 -
Electrical Data Electrical-to-Optical Efficiency PE %   50 -
Threshold current lth A - 0.9 -
Operating current lop A - 4 5
Operating voltage Vop V - 1.6 1.8
Slope Efficiency η W/A - 1 -

Fiber Data



Core diameter Dcore μm - 105 -
Cladding diameter Dclad μm - 125 -
Buffer diameter Dbuf μm - 245 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 1 -
Fiber Loose Tubing Diameter - μm 0.9mm PVC 15cm
Minimum Bending Radius - mm 50 - -
Fiber termination - - - None -
Feedback Isolation Back reflection wavelength λ nm 1020-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -40 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 20 - 30
Relative Humidity RH % 15 - 85
