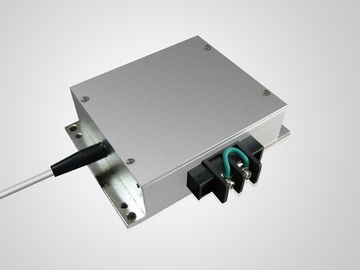

0.22N.A. Fiber Bundled 808nm Diode Laser Module High Power 10W

0.22N.A. Fiber Bundled 808nm Diode Laser Module High Power 10W

MOQ: 1 Piece/Pieces
Delivery Period: 4-8weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K808F02MA-15.00W
Product Name:
Oem Laser Module
Output Power:
10W, 15W
Wavelength:
808nm
Fiber Bundle Diameter:
375µm
Numerical Aperture:
0.22N.A
Application:
Laser Pumping,Illumination,Medical Use,Material Processing
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
4-8weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

laser light module

,

laser diodes high power

Product Description



High Power 0.22N.A Fiber Bundled 808nm 10W Diode Laser Module K808F02MA-15.00W







Features:



  •    Output power 10W, 15W
  •    375µm fiber bundle diameter
  •    0.22N.A.
  •    Wavelength 808nm
  •    650nm aiming beam (optional)





Applications:



  •    Laser pumping
  •    Illumination
  •    Medical use
  •    Material processing





Specifications(25℃)

Symbol

Unit

K808F02MA-10.00W

K808F02MA-15.00W

Optical Data

CW-Output Power(1)

P0

W

10

15

Center Wavelength

λc

nm

808

Tolerance of λ

-

nm

±3, ±10

Temperature Drift of λ

-

nm/℃

~0.3

Fiber Data(2)

Fiber Core Diameter

Wc

µm

375

Numerical Aperture

N.A.

-

0.22

Fiber Connector

-

-

SMA-905

Electrical Data

Operating Current

Iop

A

2.6

3.0

Threshold Current

Ith

A

0.4

Conversion Efficiency

η

%

40

Slope Efficiency

ηD

W/A

4.7

6.6

Operating Voltage

Vop

V

~10.0

~14.0

Reverse Voltage

Vre

V

~10.0

~14.0

Others

Operating Temperature

Top

10~30

Storage Temperature

Tst

-20~+80

Expected Lifetime

MTTF

h

>10, 000

Dimensions

(fiber and connector not included)

-

mm

123×80×25

Weight

-

g

~600



(1)    All LDs inside are connected in serial.

(2)    Other fibers available upon request.
