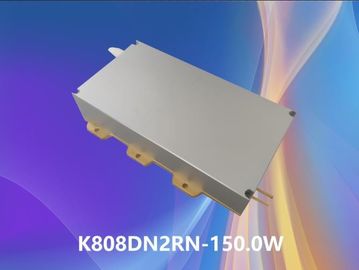

808nm /150W High Power Pump Laser Diode

808nm /150W High Power Pump Laser Diode

    • 808nm /150W High Power Pump Laser Diode
  • 808nm /150W High Power Pump Laser Diode

    Product Details:

    Place of Origin: Beijing China(Mainland)
    Brand Name: BWT
    Certification: ISO9001:2015
    Model Number: K808DN2RN-150.0W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Delivery Time: 4-8weeks
    Payment Terms: T/T
    Supply Ability: 200,000/year
    Contact Now
    Detailed Product Description
    Product Name: Diode Laser Module Output Power: 150W
    Wavelength: 808nm Fiber Bundle Diameter: 400µm
    Numerical Aperture: 0.22N.A
    High Light:

    medical diode laser

    ,

    mini laser module

    Features:

    150W output power

    808nm wavelength

    400μm/0.22NA fiber



    Applications:

    Solid-state laser pumping 

    Medical use 

    Material processing



    Specifications(25℃) Symbol Unit K808DN2RN-150.0W
    Minimum Typical Maximum

    Optical Data





    CW-Output Power Po W 150 - -
    Center Wavelength λc nm 805 - 811
    Threshold current Ith A - 1.8
    Operating current Iop A - - 11
    Operating voltage Vop V - - 40
    Reverse Voltage Vre V - 50 -
    Slope Efficiency η W/A - 20 -
    Electrical-to-Optical Efficiency PE % - 42 -
    Spectral width(FWHM) δλ nm - 5 -
    Back reflection wavelength Range λ nm 1040 - 1200
    Back reflection isolation - dB - 30 -
    Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.3 -
    Wavelength Shift with Current △λ/△A nm/A - 1 -
    Fiber Data Core diameter Dcore µm   400
    Cladding diameter Dclad um - 440 -
    Buffer diameter Dbuf µm - 730 -
    Numerical Aperture N.A - - 0.22 -
    Fiber length lc m 1.9 2 2.1
    Fiber jacket - -   1.5mmPVC
    Fiber Bend Radius - mm - 140 -
    Thermistor Wavelength Range Rt (K Ω)/β(25℃) - 10±3%/3477 -
    Others ESD Vesd V   - 500
    Storage Temperature Tstg -20 - 70
    Lead Soldering Temp Tls - - 260
    Lead Soldering Time t sec - - 10
    Operating case temperature Top 15 - 35
    Relative Humidity RH % 15 - 75
