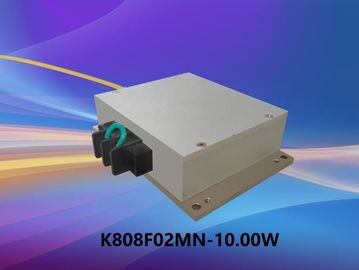

Fiber Bundled 808nm 10W Diode Laser Module , High Power 0.22N.A.

Fiber Bundled 808nm 10W Diode Laser Module , High Power 0.22N.A.

Fiber Bundled 808nm 10W Diode Laser Module , High Power 0.22N.A.

Product Details:

Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: K808F02MN-10.00W

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Contact Now
Detailed Product Description
Product Name: 808nm Laser Module Output Power: 10W
Wavelength: 808nm Fiber Bundle Diameter: 400µm
Numerical Aperture: 0.22N.A Application: Laser Pumping,Illumination,Medical Use,Material Processing
High Light:

laser diodes high power

,

high power laser diode module


 Features:


  •   808nm wavelength
  •   10W output power
  •    400µm fiber bundle diameter
  •    0.22N.A.



Applications:


  •    Laser pumping
  •    Illumination
  •    Medical use
  •    Material processing







Specifications(25℃) Symbol Unit K808F02MN-10.00W
Minimum Typical Maximum

Parameter





CW-Output Power Po W 10 - -
Center Wavelength λc nm 808±10
Spectral width(FWHM) △​λ nm - 6 -
Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △​λ/△A nm/A - 1 -
Threshold current Ith A - 0.8
Operating current Iop A - - 5
Operating voltage Vop V - - 6
Slope Efficiency η W/A - 2.5 -
Electrical-to-Optical Efficiency PE % - 40 -
Fiber Data Core diameter Dcore µm - 400 -
Cladding Diameter Dclad µm - 440 -
Numerical Aperture N.A - - 0.22 -
Fiber length lf m - 1.0 -
Fiber Loose Tubing Diameter   mm 3mm Stainless steel
Minimum Bending Radius - mm 180 - -
Fiber termination - - - SMA905 -
Others ESD Vesd V   - 500
Storage Temperature Tstg -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
