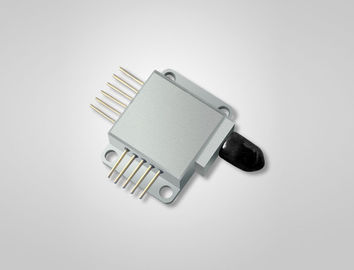

Fiber Coupled medical diode laser , 808nm laser module 4W

Fiber Coupled medical diode laser , 808nm laser module 4W

    • Fiber Coupled medical diode laser , 808nm laser module 4W
  • Fiber Coupled medical diode laser , 808nm laser module 4W

    Product Details:

    Place of Origin: Beijing China(Mainland)
    Brand Name: BWT
    Certification: ISO9001
    Model Number: K976D06FA-4.000W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Delivery Time: 3-6weeks
    Payment Terms: T/T
    Supply Ability: 100,000/year
    Contact Now
    Detailed Product Description
    Product Name: Laser Diode Module Output Power: 4W
    Wavelength: 808nm Fiber Bundle Diameter: 200µm
    Numerical Aperture: 0.22N.A Application: Material Processing,Medical Use
    High Light:

    808nm diode laser

    ,

    high power laser module

    Features:

    4W output power

    808nm wavelength

    Standard fiber coupling for 200μm/ 0.22NA

    Customer options:

    Aiming beam

    Power PD

    Thermistor

    Reflective fiber detection sensor



    Applications:

    Medical use

    Material processing





    Specifications(25℃) Symbol Unit K808F11CA-4.00W
    Minimum Typical Maximum

    Optical Data





    CW-Output Power Po W 4 - -
    Threshold current Ith A - 0.8
    Operating current Iop A - - 5.2
    Operating voltage Vop V - - 2.2
    Reverse Voltage Vre V - 2.5 -
    Slope Efficiency η W/A - 0.85 -
    Electrical-to-Optical Efficiency PE % 40 - -
    Center wavelength ʎc nm 798 - 818
    Spectral width(FWHM) δλ nm - 6 -
    Wavelength Shift with Temperature - nm/℃ - 0.3 -
    Fiber Data Buffer diameter Dbuf µm - 400 -
    Cladding diameter Dclad µm - 220 -
    Core diameter Dcore µm - 200 -
    Numeric aperture NA - - 0.22 -
    Others ESD Vesd V   - 500
    Storage Temperature Tstg -20 - 70
    Lead Soldering Temp Tls - - 260
    Lead Soldering Time t sec - - 10
    Operating case temperature Top 15 - 35
    Relative Humidity RH % 15 - 75
    PD Data Current Imo μA 50 - 500
    Thermistor - Rt (K Ω)/β(25℃) - 10±3%/3477 -
    Aiming Beam Data Output Power Pa mW - 2 -
    Wavelength la nm 640 - 660
    Voltage Va V - 2.2 -
    Current la mA - 18 23
