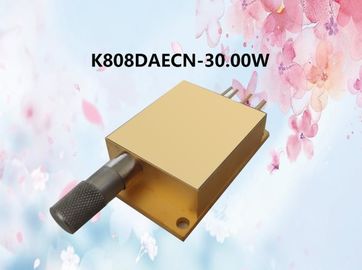

30W Detachable 808nm Pump Diode Lasers Module High Power

30W Detachable 808nm Pump Diode Lasers Module High Power

  • 30W Detachable 808nm Pump Diode Lasers Module High Power
30W Detachable 808nm Pump Diode Lasers Module High Power
Product Details:
Place of Origin: Beijing China(Mainland)
Brand Name: BWT
Certification: ISO9001
Model Number: K808DAECN-30.00W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Contact Now
Detailed Product Description
Product Name: Laser Diode Module Output Power: 30W
Wavelength: 808nm Fiber Bundle Diameter: 400µm
Numerical Aperture: 0.22N.A Application: Solid-state Laser Pumping
High Light:

laser diodes high power

,

high power laser diode module

Features:

808nm wavelength

30W output power

400μm fiber core diameter

0.22 N.A.



Applications:

Solid-state laser pumping

Medical Use

Material processing



Specifications(25℃) Symbol Unit K808DAECN-30.00W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 30 - -
Center wavelength λc nm 808±3
Spectral Width(FWHM) △λ nm - 3 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A - 1 -
Electrical Data Electrical-to-Optical Efficiency PE % - 45 -
Threshold current Ith A - 9 10
Operating current Iop A - 1.8 -
Operating voltage Vop V - - 8
Slope Efficiency η W/A - 3 -
Fiber Data Core diameter Dcore µm - 400 -
Numeric aperture NA - - 0.22 -
Fiber termination - - - SMA905 -
Feedback Isolation - Rt (K Ω)/β(25℃)   10±3%/3477
Others ESD Vesd V - - 500
Storage Temperature Tstg -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
