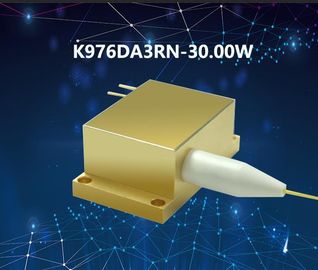

Pump High Power Diode Laser Module 976nm 0.22N.A. 30W

Pump High Power Diode Laser Module 976nm 0.22N.A. 30W

Pump High Power Diode Laser Module 976nm 0.22N.A. 30W

Product Details:

Place of Origin: Beijing China(Mainland)
Brand Name: BWT
Certification: ISO9001
Model Number: K976FANCA-30.00W

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Contact Now
Detailed Product Description
Product Name: High Power Laser Module Output Power: 30W
Wavelength: 976nm Fiber Bundle Diameter: 200µm
Numerical Aperture: 0.22N.A Application: Laser Pumping ,Medical Use, Material Processing

Features:

976nm wavelength

30W output power

200µm fiber core diameter

0.22N.A.

Applications:

Medical Use

Material Processing



Specifications(25℃) Symbol Unit K976FANCA-30.00W
Minimum Typical Maximum

Optical Data





CW-Output Power Po W 30 - -
Threshold current Ith A - 1.0
Operating current Iop A - - 13
Operating voltage Vop V - - 6
Slope Efficiency η W/A - 2.7 -
Electrical-to-Optical Efficiency PE % 40 - -
Center wavelength ʎc nm 976±10
Spectral width(FWHM) δλ nm - 6 -
Wavelength Shift with Temperature - nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A - 1 -
Fiber Data Buffer diameter Dbuf µm - 320 -
Cladding diameter Dclad µm - 220 -
Core diameter Dcore µm - 200 -
Numeric aperture NA - - 0.22 -
Others ESD Vesd V   - 500
Storage Temperature Tstg -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
PD Data Current Imo μA 200 - 2000
Thermistor - Rt (K Ω)/β(25℃) - 10±3%/3477 -
Aiming Beam Data Output Power Pa mW - 2 -
Wavelength la nm 630 - 643
Voltage Va V - 2.2 -
Current la mA - 45 65
