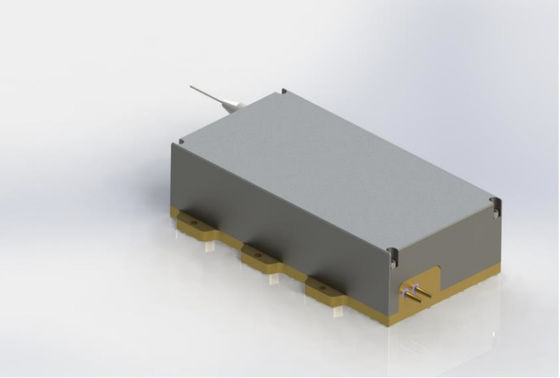

793nm High Power 180w Fiber Coupled Diode Laser For Fiber Laser Pumping

793nm High Power 180w Fiber Coupled Diode Laser For Fiber Laser Pumping

  • 793nm High Power 180w Fiber Coupled Diode Laser For Fiber Laser Pumping
793nm High Power 180w Fiber Coupled Diode Laser For Fiber Laser Pumping
Product Details:
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: K793DN2RN-180.0W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Contact Now
Detailed Product Description
Product Name: High Power Laser Module Output Power: 180W
Wavelength: 793nm Fiber Bundle Diameter: 200µm
Numerical Aperture: 0.22N.A Application: Fiber Laser Pumping
High Light:

793nm fiber coupled diode laser

,

793nm fiber coupled laser

,

180w fiber coupled diode laser

Features:

793nm wavelength

180W output power

200µm fiber core diameter

0.22N.A.

            1900nm-2100nm feedback protection
Applications:

Fiber laser pumping





Specifications(25℃)



Symbol



Unit



K793DN2RN-180.0W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 180 - -
Center Wavelength λc nm 793±3
Spectral Width (FWHM) △λ nm - 6 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A - 1 -
Electrical Data Electrical-to-Optical Efficiency PE %   39 -
Threshold current lth A - 1.5 -
Operating current lop A - 11 13
Operating voltage Vop V - 43.2 45
Slope Efficiency η W/A - 19 -

Fiber Data



Core diameter Dcore μm - 200 -
Cladding diameter Dclad μm - 220 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 2 -
Fiber Loose Tubing Diameter - μm 0.9
Minimum Bending Radius - mm 80 - -
Fiber termination - - - FF -
Feedback Isolation Back reflection wavelength λ nm 1900-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 20 - 30
Relative Humidity RH % 15 - 75
