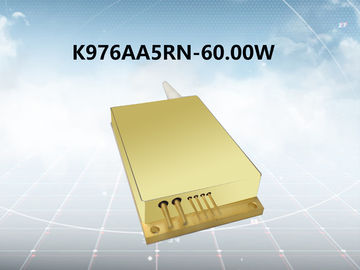

976nm 60W Wavelength-Stabilized High Power Fiber Coupled Diode Laser

976nm 60W Wavelength-Stabilized High Power Fiber Coupled Diode Laser

    • 976nm 60W Wavelength-Stabilized High Power Fiber Coupled Diode Laser
  • 976nm 60W Wavelength-Stabilized High Power Fiber Coupled Diode Laser

    Product Details:

    Place of Origin: Beijing
    Brand Name: BWT
    Certification: ISO9001
    Model Number: K976AA5RN-60.00W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1/piece
    Price: -
    Delivery Time: 4-8weeks
    Payment Terms: T/T
    Supply Ability: 200,000/year
    Contact Now
    Detailed Product Description
    Product Name: High Power Laser Module Output Power: 60W
    Wavelength: 976nm Fiber Bundle Diameter: 106.5µm
    Numerical Aperture: 0.22N.A Application: Laser Pumping
    High Light:

    high power laser diodes

    ,

    high power laser module

     Features:

    976nm wavelength

    60W output power

    106.5µm fiber core diameter

    0.22N.A.

    Narrow bandwidth △λ≦0.7nm

    1040nm-1200nm feedback protection



     Applications:

    Fiber laser pumping







    Specifications(25℃)



    Symbol



    Unit



    K976AA5RN-60.0W
    Minimum Typical Maximum
    Optical Data CW-Output Power Po W 60 - -
    Center Wavelength λc nm 976±0.5
    Spectral Width (FWHM) △λ nm <0.7
    Wavelength Locked range - A (Iop-2) ~ Iop
    Wavelength Shift with Temperature △λ/△T nm/℃ - 0.02 -
    Wavelength Shift with Current △λ/△A nm/A - 0.03 -
    Electrical Data Electrical-to-Optical Efficiency PE %   48 -
    Threshold current lth A - 0.9 -
    Operating current lop A - 12 13
    Operating voltage Vop V - 12 12.5
    Slope Efficiency η W/A - 5.5 -

    Fiber Data



    Core diameter Dcore μm - 106.5 -
    Cladding diameter Dclad μm - 125 -
    Buffer diameter Dbuf μm - 250 -
    Numeric aperture NA NA - 0.22 -
    Fiber length Lf m - 1 -
    Fiber Loose Tubing Diameter - μm 0.9mm PVC 90cm
    Minimum Bending Radius - mm 60 - -
    Fiber termination - - - None -
    Feedback Isolation Back reflection wavelength λ nm 1040-1200
    Back reflection isolation - dB - 30 -
    Others ESD Vesd V - - 500
    Storage temperature Tst -20 - 70
    Lead Soldering Temp Tls - - 260
    Lead Soldering Time t sec - - 10
    Operating case temperature Top 25 - 30
    Relative Humidity RH % 15 - 75
