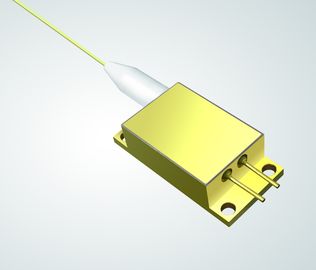

OEM 18W Wavelength Stabilized Laser Diode 976nm 0.22N.A.

OEM 18W Wavelength Stabilized Laser Diode 976nm 0.22N.A.

    • OEM 18W Wavelength Stabilized Laser Diode 976nm 0.22N.A.
  • OEM 18W Wavelength Stabilized Laser Diode 976nm 0.22N.A.

    Product Details:

    Place of Origin: Beijing China(Mainland)
    Brand Name: BWT
    Certification: ISO9001
    Model Number: K976AA2RN-18.00W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Delivery Time: 4-8weeks
    Payment Terms: T/T
    Supply Ability: 200,000/year
    Contact Now
    Detailed Product Description
    High Light:

    high power laser diode module

    ,

    high power laser module

    Features:

    976nm wavelength

    18W output power

    105µm fiber core diameter

    0.22N.A.

    Narrow bandwidth △λ≦0.7nm

              1040nm-1200nm feedback protection

    Applications:

    Fiber laser pumping





    Specifications(25℃)



    Symbol



    Unit



    K976AA2RN-18.00W
    Minimum Typical Maximum
    Optical Data CW-Output Power Po W 18 - -
    Center Wavelength λc nm 976±0.5
    Spectral Width (FWHM) △λ nm <0.7
    Wavelength Shift with Temperature △λ/△T nm/℃ - 0.02 -
    Wavelength Shift with Current △λ/△A nm/A - 0.03 -
    Electrical Data Electrical-to-Optical Efficiency PE %   48 -
    Threshold current lth A - 0.9 -
    Operating current lop A - 12 13
    Operating voltage Vop V - 3.3 4
    Slope Efficiency η W/A - 1.7 -

    Fiber Data



    Core diameter Dcore μm - 105 -
    Cladding diameter Dclad μm - 125 -
    Buffer diameter Dbuf μm - 250 -
    Numeric aperture NA NA - 0.22 -
    Fiber length Lf m - 1 -
    Fiber Loose Tubing Diameter - μm 0.9mm PVC 15cm
    Minimum Bending Radius - mm 60 - -
    Fiber termination - - - None -
    Feedback Isolation Back reflection wavelength λ nm 1040-1200
    Back reflection isolation - dB - 30 -
    Others ESD Vesd V - - 500
    Storage temperature Tst -20 - 70
    Lead Soldering Temp Tls - - 260
    Lead Soldering Time t sec - - 10
    Operating case temperature Top 25 - 30
    Relative Humidity RH % 15 - 75
