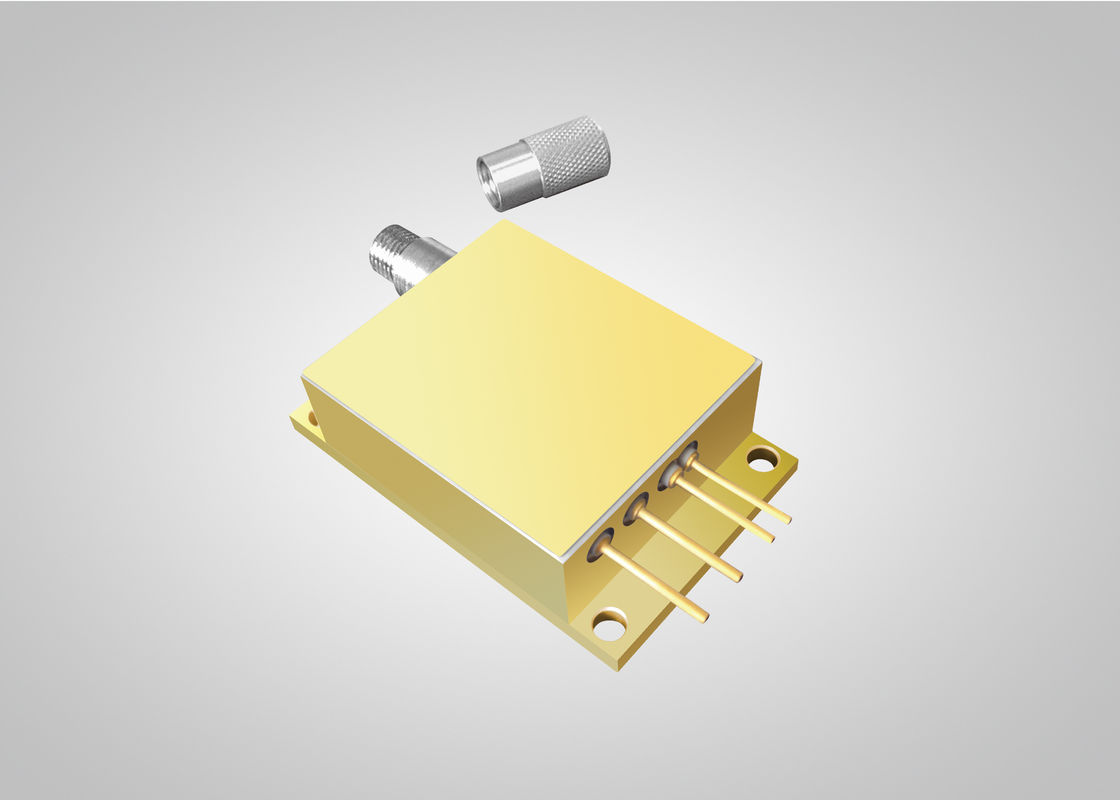

Pump Laser Diode 808nm 30w With 400um 0.22N.A. Fiber Detachable

Pump Laser Diode 808nm 30w With 400um 0.22N.A. Fiber Detachable

    • Pump Laser Diode 808nm 30w With 400um 0.22N.A. Fiber Detachable
    • Pump Laser Diode 808nm 30w With 400um 0.22N.A. Fiber Detachable
    • Pump Laser Diode 808nm 30w With 400um 0.22N.A. Fiber Detachable
  • Pump Laser Diode 808nm 30w With 400um 0.22N.A. Fiber Detachable

    Product Details:

    Place of Origin: Beijing China(Mainland)
    Brand Name: BWT
    Certification: ISO9001
    Model Number: K808DAECN-30.00W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Delivery Time: 4-8weeks
    Payment Terms: T/T
    Supply Ability: 200,000/year
    Contact Now
    Detailed Product Description

    Pump Laser Diode 808nm 30W with 400um 0.22N.A. Fiber


    Features:

    808nm wavelength

    30W output power

    400μm fiber core diameter

    0.22 N.A.



    Applications:

    Solid-state laser pumping

    Medical Use

    Material processing





    Specifications (25℃)

    Symbol

    Unit

    K808DAECN-30.00W

    Optical Data(1)

    CW-Output Power

    Po

    W

    30

    Center Wavelength

    lc

    nm

    808

    Tolerance of l

    -

    nm

    ±3

    Spectral Width (FWHM)

    △l

    nm

    <3

    Temperature Drift of l

    -

    nm/℃

    ~0.3

    Fiber Data(2)

    Fiber Core Diameter

    Wc

    µm

    400

    Fiber Numerical Aperture

    N.A.

    -

    0.22

    Fiber Connector

    -

    -

    SMA905

    Electrical Data

    Operating Current

    Iop

    A

    9

    Threshold Current

    Ith

    A

    1.8

    Conversion Efficiency

    η

    %

    40

    Slope Efficiency

    ηD

    W/A

    4.1

    Operating Voltage

    Vop

    V

    8.0

    Reverse Voltage

    Vre

    V

    10

    Thermistor (3)

    Thermistor

    Rt

    (K Ω)/β(25℃)

    10±3%/3477

    Others

    Operating Temperature(4)

    Top

    10~40

    Storage Temperature

    Tst

    -20~70

    Expected Lifetime

    MTTF

    h

    >10,000

    Dimensions

    -

    mm

    47.0 x 30.0 x 13.6

    Lead Soldering Temperature

    Tis

    260(10 sec.)

    1. Data measured under operation output at 30W.
    2. Other fibers available upon request.
    3. Rt=R0·exp ( β(1/T—1/T0)), (T0=25℃=298K).
    4. Custom operating temperature and operating power upon request.
