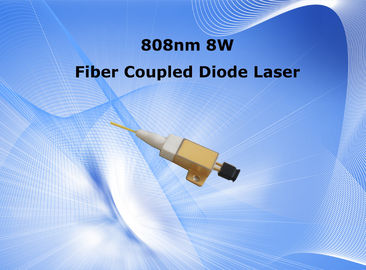

200µm Fiber Coupled Diode Laser Module Medical Laser 808nm 8W

200µm Fiber Coupled Diode Laser Module Medical Laser 808nm 8W

  • 200µm Fiber Coupled Diode Laser Module Medical Laser 808nm 8W
200µm Fiber Coupled Diode Laser Module Medical Laser 808nm 8W
Product Details:
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: K808DB2RN-8.000W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Contact Now
Detailed Product Description
High Light:

high power laser diode

,

high power laser module

Features:

808nm wavelength

8W output power

200μm/ 0.22NA fiber



Applications:

Solid-state laser pumping

Medical use

Material processing



Specifications(25℃)



Symbol



Unit



K808DB2FN-8.000W



Minimum Typical Maximum
Optical Data CW-Output Power Po W 8 - -
Center Wavelength λc nm 808±3
Spectral Width (FWHM) △λ nm - 3 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A   1
Electrical Data Electrical-to-Optical Efficiency PE %   46 -
Threshold current lth A - 1.9 -
Operating current lop A - - 11
Operating voltage Vop V - 1.8 2
Slope Efficiency η W/A - 1 -

Fiber Data



Core diameter Dcore μm - 200 -
Cladding diameter Dclad μm - 220 -
Buffer diameter Dbuf μm - 320 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 1 -
Fiber Loose Tubing Diameter - μm 0.9mm PVC
Minimum Bending Radius - mm 88 - -
Fiber termination - - - SMA905 -
Feedback Isolation Back reflection wavelength λ nm 1020-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -40 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 85
