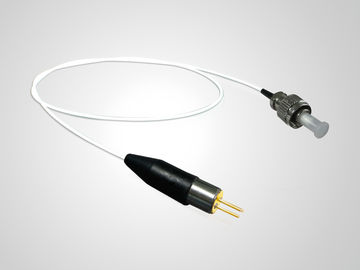

105µm Red Diode Laser Module 635nm 400mW for Biochemical Analysis

105µm Red Diode Laser Module 635nm 400mW for Biochemical Analysis

  • 105µm  Red Diode Laser Module 635nm 400mW for Biochemical Analysis
105µm  Red Diode Laser Module 635nm 400mW for Biochemical Analysis
Product Details:
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: K635F03RN-0.400W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Contact Now
Detailed Product Description
High Light:

35nm diode laser

,

red laser module

Features:

635nm wavelength

400mW output power

105µm fiber core diameter

0.22N.A.

1040nm-1200nm feedback protection


Applications:

Aiming beam for fiber laser

Printing application

Medical use

Biochemical analysis

Scientific research





Specifications(25℃) Symbol Unit K635F03RN-0.400W
Minimum Typical Maximum
Optical Data CW-Output Power Po mW 400 - -
Center Wavelength - nm 635±10
Spectral Width (FWHM) - nm - 3 -
Wavelength Temperature Shift - nm/℃ - 0.2 -
Electrical Data Electrical-to-Optical Efficiency PE % 26 - -
Threshold current lth mA - 150 -
Operating current lop mA - - 700
Operating voltage Vop V - - 2.6
Slope Efficiency η W/A - 0.71 -

Fiber Data



Core diameter Dcore μm - 105 -
Cladding diameter Dclad μm - 125 -
Buffer diameter Dbuf μm - 245 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 1 -
Fiber Loose Tubing Diameter - μm 0.9mm PVC
Minimum Bending Radius - mm 50 - -
Fiber termination - - FC(APC)/SC(APC) /SMA905/ST
Feedback Isolation Back reflection wavelength - nm 1040-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
