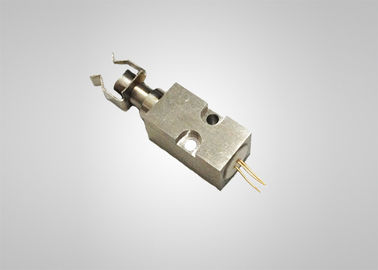

Name: Printing Fiber Coupled Diode Laser 405nm 160mW With 40µm Fiber
Brand: BWT Beijing Ltd.
SKU: K405E03CN-0.160W
Availability: InStock

MOQ:	1 Piece/Pieces
Standard Packaging:	Coaxial
Delivery Period:	3-6weeks
Payment Method:	T/T
Supply Capacity:	100,000/year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

BWT

Certification

ISO9001

Model Number

K405E03CN-0.160W

Highlight:

high power laser diode

high power laser diode module

Product Description

Features:

405nm wavelength

160mW output power

40µm fiber core diameter

0.22N.A.

Applications:

Printing

Specifications(25℃)		Symbol	Unit	K405E03CN-0.160W
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	Po	mW	160	-	-
	Threshold current	Ith	mA		30
	Operating current	Iop	mA			150
	Operating voltage	Vop	V			5.5
	Reverse Voltage	Vre	V		5.5
	Slope Efficiency	η	W/A		1.4
	Electrical-to-Optical Efficiency	PE	%	20
	Center wavelength	ʎc	nm	400		410
	Spectral width(FWHM)	Δʎ	nm		4
	Wavelength Shift with Temperature	-	nm/℃		0.3
Fiber Data	Core Diameter	Dcore	µm		40
Fiber Data	Numerical Aperture	NA	NA		0.22
Others	ESD	Vesd	V			500
	Storage Temperature	Tstg	℃	-20		70
	Lead Soldering Temp	Tls	℃			260
	Lead Soldering Time	t	sec			10
	Operating case temperature	Top	℃	15		35
	Relative Humidity	RH	%	15		75
