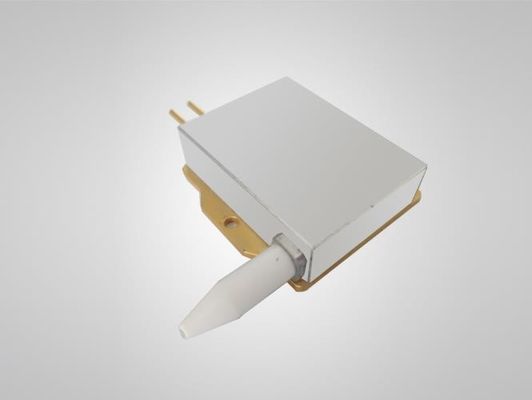

915nm 70W High Power Diode Lasers With 106.5µm 0.22NA Fiber

915nm 70W High Power Diode Lasers With 106.5µm 0.22NA Fiber

    • 915nm 70W High Power Diode Lasers With 106.5µm 0.22NA Fiber
  • 915nm 70W High Power Diode Lasers With 106.5µm 0.22NA Fiber

    Product Details:

    Place of Origin: Beijing China(Mainland)
    Brand Name: BWT
    Certification: ISO9001
    Model Number: K915FNXRN-70.00W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Delivery Time: 4-8weeks
    Payment Terms: T/T
    Supply Ability: 200,000/year
    Contact Now
    Detailed Product Description
    Type: Diode Laser Wavelength: 915nm
    Product Name: K915FNXRN-70.00W Application: Laser Pumping Medical Use Material Processing
    Core Diameter: 106.5µm Power: 70W
    High Light:

    high power laser diode module

    ,

    high power laser module

    Features:

    915nm wavelength

    70W output power

    106.5µm fiber core diameter

    0.22N.A.

    1040nm-1200nm feedback protection


    Applications:

    Laser pumping

    Medical Use

    Material Processing

    Specifications(25℃)



    Symbol



    Unit



    K915FNXRN-70.00W
    Minimum Typical Maximum
    Optical Data CW-Output Power Po W 70 - -
    Center Wavelength λc nm 915±10
    Spectral Width (FWHM) △λ nm - 6 -
    Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
    Wavelength Shift with Current △λ/△A nm/A - 1 -
    Electrical Data Electrical-to-Optical Efficiency PE %   50 -
    Threshold current lth A - 1.1 -
    Operating current lop A - 14.5 15.5
    Operating voltage Vop V - 9.6 10.5
    Slope Efficiency η W/A - 4.8 -

    Fiber Data



    Core diameter Dcore μm - 106.5 -
    Cladding diameter Dclad μm - 125 -
    Buffer diameter Dbuf μm - 245 -
    Numeric aperture NA - - 0.22 -
    Fiber length Lf m - 2 -
    Fiber Loose Tubing Diameter - mm 0.9mm PVC 180cm
    Minimum Bending Radius - mm 50 - -
    Fiber termination - - - None -
    Feedback Isolation Back reflection wavelength λ nm 1040-1200
    Back reflection isolation - dB - 30 -
    Others ESD Vesd V - - 500
    Storage temperature Tst -20 - 70
    Lead Soldering Temp Tls - - 260
    Lead Soldering Time t sec - - 10
    Operating case temperature Top 15 - 35
    Relative Humidity RH % 15 - 75
