| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

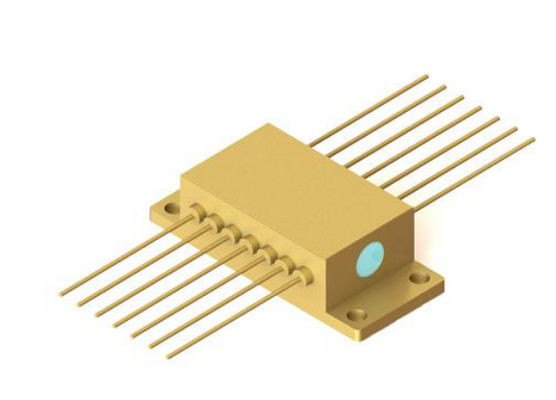

785nm 600mw Medical Fiber Coupled Diode Laser
| Specifications(25℃) | Symbol | Unit | K808F02MN-15.00W | |||
| Minimum | Typical | Maximum | ||||
|
Optical Data
(1)
|
CW-Output Power | Po | W | 0.6 | - | - |
| Center Wavelength | λc | nm | 785±0.5 | |||
| Spectral width(FWHM) | △λ | nm | <0.1 | |||
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.01 | - | |
|
Wavelength Shift with Current
|
△λ/△A
|
nm/A | - | 0.03 | - | |
|
Electrical
Data
|
Electrical-to-Optical Efficiency | PE | % | - | 30 | - |
| Threshold Current | Ith | A | - | 0.4 | - | |
| Operating Current
|
Iop | A | - | 1.1 | - | |
| Operating Voltage | Vop | V | - | 1.8 | - | |
| Slope Efficiency | η | W/A | - | 1.0 | - | |
| Thermistor | - | Rt | (KΩ)/β(25℃) | - | 10±3%/3477 | - |
| PD Data | Current | Imo | μA | 50 | - | 500 |
| TEC | TEC Max. Current | Itec | A | - | - | 2.2 |
| TEC Max. Voltage | Vtec | V | - | - | 8.7 | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage Temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Tempreature | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 20 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
|
|
