| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | K830F02FN-1.000W |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |
| Wavelength: | 830nm | Application: | Printing |
|---|---|---|---|
| Output Power: | 1W | Certification: | ISO |

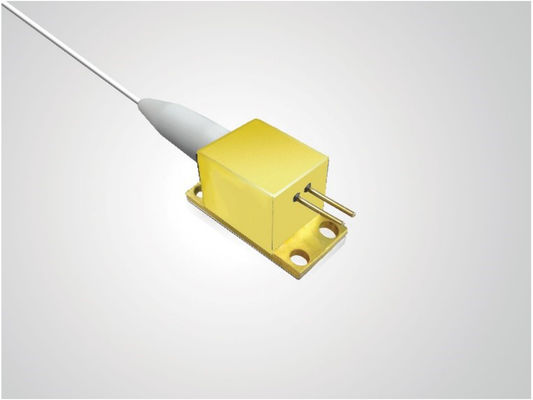

| Laser Type: | 1W Fiber Coupled Diode Laser | ||
| High Light: | bwt fiber coupled laser diode module,1w fiber coupled laser diode module,830nm fiber coupled laser diode module |
||
Features:
Applications:
|
Specifications(25℃)
|
Symbol
|
Unit
|
K830AFLFN-1.000W | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | mW | 1 | - | - |
| Center Wavelength | λc | nm | 830±10nm | |||
| Spectral Width (FWHM) | △λ | nm | 6 | |||
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | - | 40 | - |
| Threshold current | lth | A | - | 0.25 | - | |
| Operating current | lop | A | - | - | 1.5 | |
| Operating voltage | Vop | V | - | - | 2 | |
| Slope Efficiency | η | W/A | - | 0.9 | - | |
|
Fiber Data |
Core diameter | Dcore | µm | - | 50 | - |
| Cladding Diameter | Dclad | µm | - | 125 | - | |
| Numerical Aperture | NA | - | - | 0.14 | 2.2 | |
| Total Fiber length | Lf | m | - | 0.5 | - | |
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber Termination | - | - | - | ST | - | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
