| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | K915FB2RN-10.00W |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4~8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |

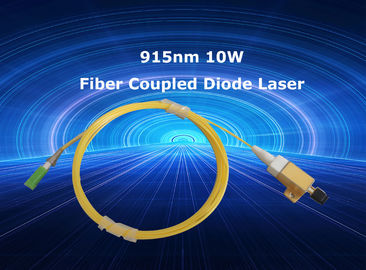

| Product Name: | Laser Diode Module | Output Power: | 10W |
|---|---|---|---|
| Wavelength: | 915nm | Fiber Bundle Diameter: | 105µm |
| Numerical Aperture: | 0.22N.A | Application: | Laser Pumping |
| High Light: | high power laser diodes,high power laser diode module |
||
Features:
915nmwavelength
10W output power
105µm fiber core diameter
0.22N.A.
Applications:
CATV
Fiber laser pumping
Medical Use
Material Processing
|
Specifications(25℃)
|
Symbol
|
Unit
|
K915FB2RN-10.00W
|
|||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 10 | - | - |
| Center Wavelength | λc | nm | 915±10 | |||
| Spectral Width (FWHM) | △λ | nm | - | 3 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Wavelength Shift with Current | △λ/△A | nm/A | - | 1 | - | |
| Spot ratio 0.15/0.22 | NA | % | - | 92 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 50 | - | |
| Threshold current | lth | A | - | 1 | - | |
| Operating current | lop | A | - | - | 13 | |
| Operating voltage | Vop | V | - | 1.6 | 1.8 | |
| Slope Efficiency | η | W/A | - | 0.9 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 105 | - |
| Cladding diameter | Dclad | μm | - | 125 | - | |
| Buffer diameter | Dbuf | μm | - | 245 | - | |
| Numeric aperture | NA | NA | - | 0.22 | - | |
| Fiber length | Lf | m | - | 1 | - | |
| Fiber Loose Tubing Diameter | - | μm | 0.9mm PVC 15cm | |||
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber termination | - | - | - | None | - | |
| Feedback Isolation | Back reflection wavelength | λ | nm | 1020-1200 | ||
| Back reflection isolation | - | dB | - | 30 | - | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -40 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 55 | |
| Relative Humidity | RH | % | 15 | - | 85 | |
