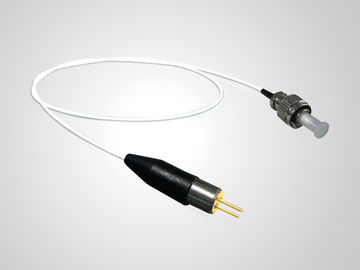

635nm 20mW Coaxial Packaged SM Diode Laser

635nm 20mW Coaxial Packaged SM Diode Laser

MOQ: 1 Piece/Pieces
Delivery Period: 4-8weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K635F03RN-0.020W
Product Name:
Diode Laser Module
Output Power:
20mW
Wavelength:
635nm
Fiber Core Diameter:
4µm
Numerical Aperture:
0.13N.A.
Application:
Aiming Beam,Printing
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
4-8weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

red laser module

,

red laser diode

Product Description

Features:

    635nm wavelength

    20mW output power

    4µm fiber core diameter

    0.13N.A.

    1040nm-1200nm feedback protection



Applications:

    Aiming beam for fiber laser

    Printing application

    Medical use

    Scientific research



Specifications(25℃)



Symbol

Unit



K635F03RN-0.020W

Minimum Typical Maximum
Optical Data CW-Output Power Po mW 20 - -
Center Wavelength - nm 635±10
Spectral Width (FWHM) - nm - 3 -
Wavelength Temperature Shift - nm/℃ - 0.2 -
Electrical Data Electrical-to-Optical Efficiency PE % 4 - -
Threshold current lth mA - 45 -
Operating current lop mA - - 165
Operating voltage Vop V - - 3
Slope Efficiency η W/A - 0.37 -

Fiber Data



Core diameter Dcore μm - 4 -
Cladding diameter Dclad μm - 125 -
Buffer diameter Dbuf μm - 245 -
Numeric aperture NA NA - 0.13 -
Fiber length Lf m - 1 -
Fiber Loose Tubing Diameter - μm 0.9mm PVC
Minimum Bending Radius - mm 50 - -
Fiber termination - - FC(APC)/SC(APC) /SMA905/ST
Feedback Isolation Back reflection wavelength - nm 1040-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
