| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | K635F03RN-0.400W |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |

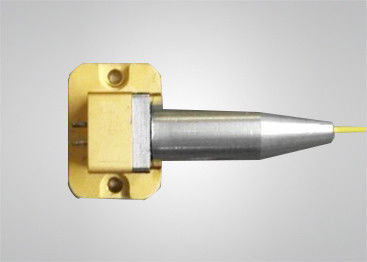

| Product Name: | Laser Diode Module | Output Power: | 3W |
|---|---|---|---|
| Wavelength: | 445nm | Fiber Core Diameter: | 105µm |
| Numerical Aperture: | 0.22N.A | ||
| High Light: | 35nm diode laser,red laser diode |
||
Features:
Applications:
|
Specifications(25℃)
|
Symbol
|
Unit
|
K445F03FN-3.000W | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 2.8 | 3 | - |
| Center Wavelength | λc | nm | 445±10 | |||
| Spectral Width (FWHM) | △λ | nm | - | 6 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.1 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 20 | - | |
| Threshold current | lth | A | - | 0.3 | 0.45 | |
| Operating current | lop | A | - | - | 3.0 | |
| Operating voltage | Vop | V | - | - | 5.2 | |
| Slope Efficiency | η | W/A | - | 1.2 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 105 | - |
| Numeric aperture | NA | NA | - | 0.22 | - | |
| Fiber length | Lf | m | - | 1 | - | |
| Fiber Loose Tubing Diameter | - | μm | 0.9mm PVC | |||
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber termination | - | - | - | None | - | |
| Others | End of Life Current | Leof | A | 3.0 | ||
| End of Life Power | Peol | W | 2.4 | - | ||
| ESD | Vesd | V | - | - | 500 | |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
