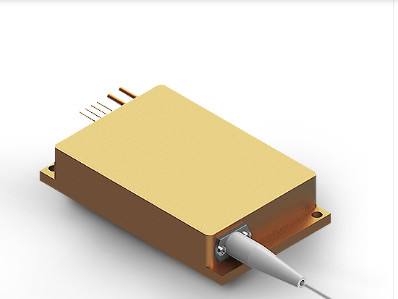

K793DA5RN Bwt 793nm 50w Diode Laser ISO9001 Passed

Basic Information
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: K793DA5RN-50.00W
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Detail Information
Name: 793nm-50W Wavelength: 793nm
Output Power: 50W Fiber Core Diameter: 105μm
Feedback Protection: 1900-2100nm Applications: Fiber Laser Pump Source , Scientific Research
High Light:

793nm 50w diode laser

,

bwt 50w diode laser

,

fiber coupled diode 50w laser module


Product Description

793nm-50W



Features:

793nm wavelength

50W output power

105µm fiber core diameter

0.22N.A.

1900nm-2100nm feedback protection
Applications:

Fiber laser pump source

           Scientific Research



Specifications(25℃)



Symbol



Unit



K793DA5RN-50.00W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 50 - -
Center Wavelength λc nm 793±3
Spectral Width (FWHM) △λ nm - 3 5
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
0.15/0.22NA - % - 90 -
Electrical Data Electrical-to-Optical Efficiency PE %   38 -
Threshold current lth A - 11 12.5
Operating current lop A - 1.6 -
Operating voltage Vop V - 10.8
Slope Efficiency η W/A - 2.0 -

Fiber Data



Core diameter Dcore μm - 105 -
Cladding diameter Dclad μm - 125 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 1.0 -
Fiber Loose Tubing Diameter - mm 0.9mm
Minimum Bending Radius - mm 50 - -
Fiber termination - - - None -
Feedback Isolation Back reflection wavelength λ nm 1900-2100
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 20 - 30
Relative Humidity RH % 15 - 75
