MOQ: | 1 Piece/Pieces |
Delivery Period: | 4-8weeks |
Payment Method: | T/T |
Supply Capacity: | 100,000/year |

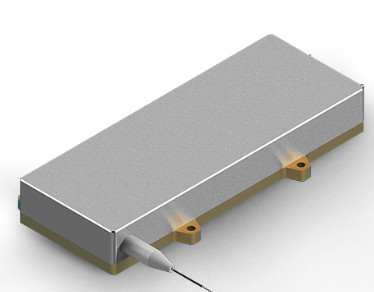

976nm-700W
Features:
1020nm~1200nm feedback protection
Applications:
Specifications(25℃)
|
Symbol
|
Unit
|
K976DNERN-700.0W | |||
Minimum | Typical | Maximum | ||||
Optical Data | CW-Output Power | Po | W | 700 | - | - |
Center Wavelength | λc | nm | 976±3 | |||
Spectral Width (FWHM) | △λ | nm |
6
|
|||
Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
Electrical Data | Electrical-to-Optical Efficiency | PE | % | 50 | - | - |
Threshold current | lth | A | - | 1.5 | - | |
Operating current | lop | A | - | 30 | 31 | |
Operating voltage | Vop | V | - | 45.6 | 47 | |
Slope Efficiency | η | W/A | - | 24.5 | - | |
Fiber Data
|
Core diameter | Dcore | μm | - | 200 | - |
Cladding Diameter | Dclad | μm | - | 220 | - | |
Numeric Aperture | NA | - | - | 0.22 | - | |
Fiber Length | L | m | - | 2 | - | |
Fiber Loose Tubing Diameter | - | mm | - | 0.9 | - | |
Minimum Bending Radius | - | mm | 88 | - | - | |
Fiber termination | - | - | - | None | - | |
Feedback lsolation | Wavelength Range | - | nm | 1020-1200 | ||
lsolation | - | dB | - | 30 | - | |
Others | ESD | Vesd | V | - | - | 500 |
Storage temperature | Tst | ℃ | -20 | - | 70 | |
Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
Lead Soldering Time | t | sec | - | - | 10 | |
Operating case temperature | Top | ℃ | 20 | - | 30 | |
Relative Humidity | RH | % | 15 | - | 75 |
