| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 1-4weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

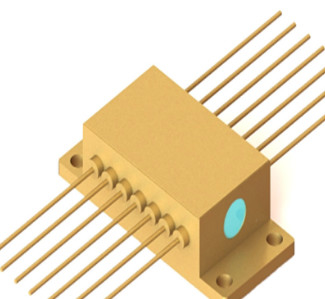

830nm-600mW
Features:
830nm wavelength
600mW output power
105µm fiber core diameter
0.22N.A.
|
Specifications(25℃)
|
Symbol
|
Unit
|
K830AFLWN-0.600W | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 0.6 | - | - |
| Center Wavelength | λc | nm | 830±0.5 | |||
| Spectral Width (FWHM) | △λ | nm | - | ＜0.1 | ||
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.01 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 30 | - | |
| Threshold current | lth | A | - | 0.3 | - | |
| Operating current | lop | A | - | 1.0 | - | |
| Operating voltage | Vop | V | - | 1.8 | - | |
| Slope Efficiency | η | W/A | - | 0.9 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 105 | - |
| Cladding diameter | Dclad | μm | - | 125 | - | |
| Numeric aperture | NA | NA | - | 0.22 | - | |
| Fiber length | Lf | m | - | 1 | - | |
| Fiber Loose Tubing Diameter | - | mm | 0.9mm | |||
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber termination | - | - | - | N/A | - | |
| Thermistor | Rt | (KΩ)/β(25℃) | 10土3%/3477 | |||
| PD | Curent | lmo | μA | 100 | 1000 | |
| TEC | TEC Max.Current | ltec | A | - | - | 2.2 |
| TEC Max.Voltage | Vtec | V | - | - | 8.7 | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 20 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
|
|
