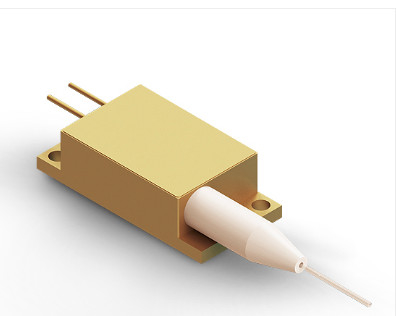

20 Watt 940nm Fiber Coupled Diode Laser ISO9001

Basic Information
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: K940DA2HN-20.00W
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Detail Information
Wavelength: 940nm Power: 20W
Application: Fiber Laser Pump Source Optical fiber Numerical Aperture: 0.22NA
Name: 940nm-20W Feedback Protection: 1400-1600nm
High Light:

20 watt fiber coupled diode laser

,

940nm fiber coupled diode laser

,

fiber coupled diode 940nm laser


Product Description

940nm-20W



Features:

940nm wavelength

20W output power

105µm fiber core diameter

0.22N.A.

1400nm-1600nm feedback protection


Applications:

Fiber laser pump source



Specifications(25℃)



Symbol



Unit



K940DA2HN-20.00W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 20 - -
Center Wavelength λc nm 940±3
Spectral Width (FWHM) △λ nm - 3 6
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A - 0.6 -
Electrical Data Electrical-to-Optical Efficiency PE %   52 -
Threshold current lth A - 1.2 -
Operating current lop A - 12 13
Operating voltage Vop V - 3.2 3.6
Slope Efficiency η W/A - 1.8 -

Fiber Data



Core diameter Dcore μm - 105 -
Cladding diameter Dclad μm - 125 -
Numeric aperture NA - - 0.22 -
Fiber length Lf m - 1 -
Fiber Loose Tubing Diameter - mm 0.9mm
Minimum Bending Radius - mm 50 - -
Fiber termination - - - None -
Feedback Isolation Back reflection wavelength λ nm 1400-1600
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
