| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

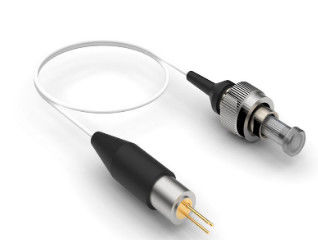

635nm 20mW Coaxial Packaged SM Diode Laser
Features:
635nm wavelength
20mW output power
4μm fiber core diameter
0.13 N.A.
900nm-1200nm feedback protection
Applications:
Cosmetology
Physiotherapy
Surgery
Dentistry
|
Specifications(25℃)
|
Symbol
|
Unit
|
K635F03RN-0.020W |
|||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | mW | 20 | - | - |
| Center Wavelength | - | nm | 635±10 | |||
| Spectral Width (FWHM) | - | nm | - | 3 | - | |
| Wavelength Temperature Shift | - | nm/℃ | - | 0.2 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 4 | - | - |
| Threshold current | lth | mA | - | 45 | - | |
| Operating current | lop | mA | - | - | 165 | |
| Operating voltage | Vop | V | - | - | 3 | |
| Slope Efficiency | η | W/A | - | 0.37 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 4 | - |
| Cladding diameter | Dclad | μm | - | 125 | - | |
| Buffer diameter | Dbuf | μm | - | 245 | - | |
| Numeric aperture | NA | NA | - | 0.13 | - | |
| Fiber length | Lf | m | - | 1 | - | |
| Fiber Loose Tubing Diameter | - | μm | 0.9mm PVC | |||
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber termination | - | - | FC(APC)/SC(APC) /SMA905/ST | |||
| Feedback Isolation | Back reflection wavelength | - | nm | 900-1200 | ||
| Back reflection isolation | - | dB | - | 30 | - | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
|
|
