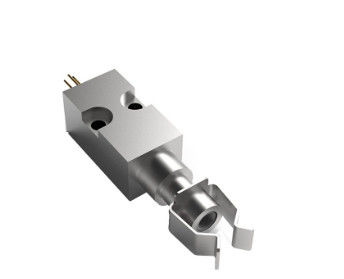

160mw Coaxial Packaged Mm 405nm Diode Laser

160mw Coaxial Packaged Mm 405nm Diode Laser

MOQ: 1 Piece/Pieces
Standard Packaging: Coaxial
Delivery Period: 3-6weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K405E03CN-0.160W
Wavelength:
405nm
Laser Power:
160mW
Application:
CTP
Optical fiber Numerical Aperture:
0.22NA
Fiber Core Diameter:
40μm
Certification:
ISO9001
Minimum Order Quantity:
1 Piece/Pieces
Packaging Details:
Coaxial
Delivery Time:
3-6weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

160mw 405nm diode laser

,

coaxial 405nm diode laser

,

coaxial 405 diode laser

Product Description

405nm 160mW Coaxial Packaged MM Diode Laser



Features:

405nm wavelength

160mW output power

40µm fiber core diameter

0.22N.A.



Applications:

CTP





Specifications(25℃) Symbol Unit K405E03CN-0.160W
Minimum Typical Maximum

Optical Data



CW-Output Power Po mW 160 - -
Center wavelength ʎc nm 405±5
Spectral width(FWHM) Δʎ nm - 4 -
Wavelength Shift with Temperature △ʎ/△T nm/℃ - 0.3 -
Electrical Data Slope Efficiency η W/A - 1.4 -
Electrical-to-Optical Efficiency PE % 20 -
Threshold current Ith mA - 30 -
Operating current lop mA - - 150
Operating voltage Vop V - - 5.5
Fiber Data Core Diameter Dcore µm - 40 -
Numerical Aperture NA NA - 0.22 -
Others ESD Vesd V - - 500
Storage Temperature Tstg -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
