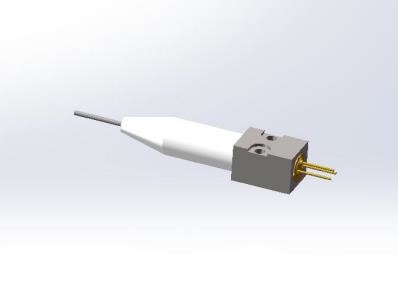

Diode Laser Module 520nm 10mW Coaxial Packaged Diode Laser

Diode Laser Module 520nm 10mW Coaxial Packaged Diode Laser

MOQ: 1 Piece/Pieces
Delivery Period: 4-8weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K520F03FN-0.010W
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
4-8weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

35nm diode laser

,

red laser diode

Product Description

Features:

 520nm wavelength 

    10mW output power 

    105µm fiber core diameter 

    0.22N.A.

Applications:

  • Aiming beam
Specifications (25℃) Symbol Unit K520F03FN-0.010W
Minimum Typical Maximum
Parameter CW Output Power Po W 10 - -
Threshold current Ith A - 60
Operating current Iop A - - 180
Operating voltage Vop V - - 8
Reverse Voltage Vre V - 2 -
Slope Efficiency η W/A - 0.08 -
Electrical-to-Optical Efficiency PE % 0.5 - -
Center wavelength λc nm 510 - 530
Spectral width(FWHM) λ nm - 3 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.2 -
Back reflection isolation - dB - 30 -
Fiber Data Buffer diameter Dbuf μm - 250 -
Cladding diameter Dclad μm - 125 -
Core diameter Dcore μm - 105 -
Numeric aperture NA NA - 0.22 -
Fiber length lc m 0.9 1 1.1
Connector - - FC(APC)/SC(APC) /SMA905/ST
Fiber Bend Radius - mm - 40 -
Others ESD - V - - 500
Storage temperature - -20 - 70
Lead Soldering Temp Tis - - 260
Lead Soldering Time Tis sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity - % 15 - 75
