| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

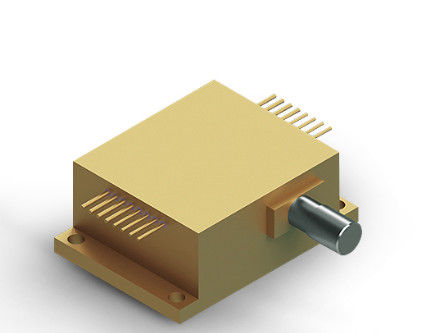

20Watt 1064nm Fiber Coupled Diode Laser With Aiming Beam , Thermistor for Medical
Features:
1064nm Wavelength
20W Output power
200μm Fiber core diameter
0.22 NA Optical fiber numerical aperture
Applications:
Cosmetology
Physiotherapy
Surgery
Dentistry
|
Specifications(25℃)
|
Symbol
|
Unit
|
KA64HAMCA-20.00W | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 20 | - | - |
| Center Wavelength | λc | nm | 1064±20 | |||
| Spectral Width (FWHM) | △λ | nm |
12
|
|||
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | - | 35 | - |
| Threshold current | lth | A | - | 0.9 | - | |
| Operating current | lop | A | - | - | 10 | |
| Operating voltage | Vop | V | - | - | 7 | |
| Slope Efficiency | η | W/A | - | 2.7 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 200 | - |
| Numeric Aperture | NA | NA | - | 0.22 | - | |
| Fiber termination | - | - | - | SMA905 | - | |
| PD Data | Current | Imo | µA | 300 | - | 2000 |
| Thermistor | - | Rt | (K Ω)/β(25℃) | - | 10±3% | - |
| Aiming Beam Data | Output Power | Pa | mW | - | 2 | - |
| Wavelength | la | nm | 635±10 | |||
| Voltage | Va | V | - | 2.3 | - | |
| Current | Ia | mA | - | 45 | 65 | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 |
|
|
|
