| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | K915FA3RN-30.00W |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |
| Wavelength: | 915nm | Outout Power: | 30W |
|---|---|---|---|
| Optical fiber Numerical Aperture: | 0.22NA | Fiber Core Diameter: | 105μm |
| Feedback Protection: | 1020-1200nm | Certification: | ISO9001 |
| High Light: | pumping fiber coupled diode laser,compact 915nm diode laser,915nm fiber coupled diode laser |
||

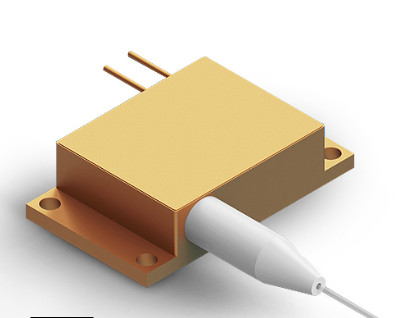

Fiber Coupled Diode Laser Pumping Compact Packaged 915nm 30 Watt
Features:
915nm wavelength
30W output power
105µm fiber core diameter
0.22N.A.
1020nm-1200nm feedback protection
Applications:
Fiber laser pump source
|
Specifications(25℃)
|
Symbol
|
Unit
|
K915FA3RN-30.00W |
|||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 30 | - | - |
| Center Wavelength | λc | nm | 915±10 | |||
| Spectral Width (FWHM) | △λ | nm | - | 3 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Wavelength Shift with Current | △λ/△A | A/℃ | - | 0.6 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 50 | - | |
| Threshold current | lth | A | - | 1.2 | - | |
| Operating current | lop | A | - | 12 | 13 | |
| Operating voltage | Vop | V | - | 4.8 | 6 | |
| Slope Efficiency | η | W/A | - | 2.7 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 105 | - |
| Cladding diameter | Dclad | μm | - | 125 | - | |
| Buffer diameter | Dbuf | μm | - | 245 | - | |
| Numeric aperture | NA | NA | - | 0.22 | - | |
| Fiber length | Lf | m | 0.9 | 1 | - | |
| Fiber Loose Tubing Diameter | - | mm | 0.9mm | |||
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber termination | - | - | - | None | - | |
| Feedback Isolation | Back reflection wavelength | λ | nm | 1020-1200 | ||
| Back reflection isolation | - | dB | - | 30 | - | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
