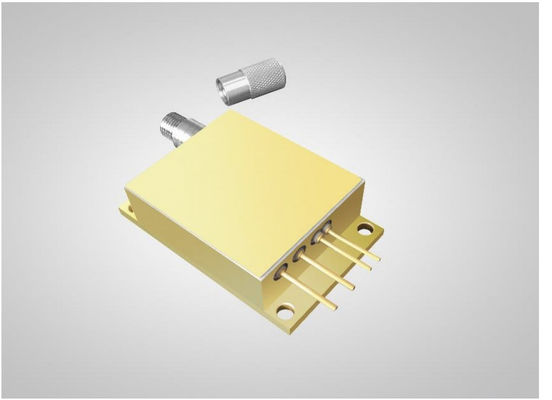

30W 808nm Fiber Coupled Diode Laser , Fiber Detachable Diode Laser Module / Medical Laser

30W 808nm Fiber Coupled Diode Laser , Fiber Detachable Diode Laser Module / Medical Laser

MOQ: 1 Piece/Pieces
Delivery Period: 4-8weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K808DAECN-30.00W
Certification:
ISO
Type:
Laser
Wavelength:
808nm
Application:
Medical
Laser Power:
30W
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
4-8weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

high power laser diode

,

high power laser module

Product Description

Features:

808nm wavelength

30W output power

400μm fiber core diameter

0.22 N.A.



Applications:

Solid-state laser pumping

Medical Use

Material processing



Specifications(25℃) Symbol Unit K808DAECN-30.00W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 30 - -
Center wavelength λc nm 808±3
Spectral Width(FWHM) △λ nm - 3 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A - 1 -
Electrical Data Electrical-to-Optical Efficiency PE % - 45 -
Threshold current Ith A - 9 10
Operating current Iop A - 1.8 -
Operating voltage Vop V - - 8
Slope Efficiency η W/A - 3 -
Fiber Data Core diameter Dcore µm - 400 -
Numeric aperture NA - - 0.22 -
Fiber termination - - - SMA905 -
Feedback Isolation - Rt (K Ω)/β(25℃)   10±3%/3477
Others ESD Vesd V - - 500
Storage Temperature Tstg -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
