| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | K785AFLFN-0.600W |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |
| Product Name: | 785nm-600mW | Output Power: | 600mW |
|---|---|---|---|
| Wavelength: | 785nm | Fiber Bundle Diameter: | 105µm |
| Numerical Aperture: | 0.22N.A | Application: | Sensing Detection |
| High Light: | 785nm fiber coupled diode laser,600mw fiber coupled diode laser,bwt diode laser |
||

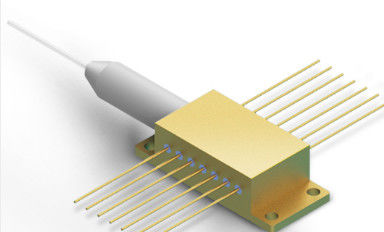

785nm-600mW
Features:
Applications:
|
Specifications(25℃)
|
Symbol
|
Unit
|
K785AFLFN-0.600W | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 0.6 | - | - |
| Center Wavelength | λc | nm | 785±0.5 | |||
| Spectral Width (FWHM) | △λ | nm | - | ＜0.1 | ||
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.01 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 30 | - | |
| Threshold current | lth | A | - | 0.4 | - | |
| Operating current | lop | A | - | 1.1 | 1.5 | |
| Operating voltage | Vop | V | - | 1.9 | 2.2 | |
| Slope Efficiency | η | W/A | - | 1.0 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 105 | - |
| Cladding diameter | Dclad | μm | - | 125 | - | |
| Numeric aperture | NA | NA | - | 0.22 | - | |
| Fiber length | Lf | m | - | 1 | - | |
| Fiber Loose Tubing Diameter | - | mm | 0.9mm | |||
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber termination | - | - | FC | |||
| Thermistor | Rt | (KΩ)/β(25℃) | 10土3%/3477 | |||
| PD | Curent | lmo | μA | 100 | 500 | |
| TEC | TEC Max.Current | ltec | A | - | - | 2.2 |
| TEC Max.Voltage | Vtec | V | - | - | 8.75 | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 20 | - | 30 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
