| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | K976F11CA-10.00W |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |

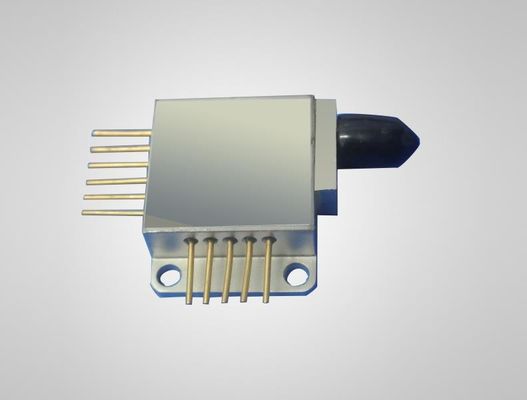

| Product Name: | Laser Diode Module | Output Power: | 10W |
|---|---|---|---|
| Wavelength: | 976nm | Fiber Bundle Diameter: | 200µm |
| Numerical Aperture: | 0.22N.A | Application: | Medical Use,Laser Pumping,Illumination,Material Processing |
| High Light: | laser diodes high power,high power laser diode module |
||
Features:
10W output power
976nm wavelength
Standard fiber coupling for 200μm/ 0.22NA
Customer options:
Aiming beam (Support 5V DC input.)
Power PD
Thermistor
Reflective fiber detection sensor
Applications:
Medical use
Material processing
| Specifications(25℃) | Symbol | Unit | K976F11CA-10.00W | |||
| Minimum | Typical | Maximum | ||||
|
Optical Data
|
CW-Output Power | Po | W | 10 | - | - |
| Threshold current | Ith | A | - | 1 | ||
| Operating current | Iop | A | - | - | 13 | |
| Operating voltage | Vop | V | - | - | 2 | |
| Reverse Voltage | Vre | V | - | 2.5 | - | |
| Slope Efficiency | η | W/A | - | 0.9 | - | |
| Electrical-to-Optical Efficiency | PE | % | 40 | - | - | |
| Center wavelength | λc | nm | 966 | - | 986 | |
| Spectral width(FWHM) | △λ | nm | - | 6 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Fiber Data | Buffer diameter | Dbuf | µm | - | 400 | - |
| Cladding diameter | Dclad | µm | - | 220 | - | |
| Core diameter | Dcore | µm | - | 200 | - | |
| Numeric aperture | NA | - | - | 0.22 | - | |
| Others | ESD | Vesd | V | - | 500 | |
| Storage Temperature | Tstg | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
| PD Data | Current | Imo | μA | 200 | - | 2000 |
| Thermistor | - | Rt | (K Ω)/β(25℃) | - | 10±3%/3477 | - |
| Aiming Beam Data | Output Power | Pa | mW | - | 2 | - |
| Wavelength | la | nm | 630 | - | 643 | |
| Voltage | Va | V | - | 2.2 | - | |
| Current | la | mA | - | 45 | 65 | |
