| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

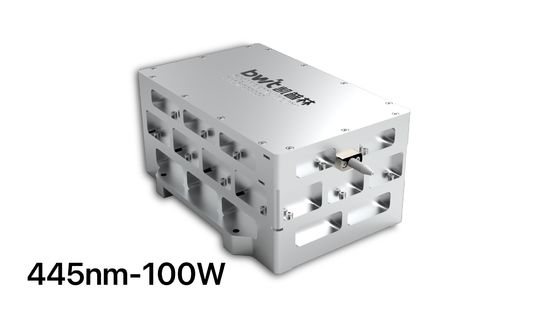

445nm 100W Fiber Coupled Diode Laser
Features:
450nm wavelength
100W output power
105µm fiber core diameter
0.22NA
Cooling mode
Water cooling
Applications:
Laser additive reproduction
|
Specifications(25℃)
|
Symbol
|
Unit
|
K445HR6FN-100.00WWN1N-10522 | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 100 | - | - |
| Number of submodules | pcs | - | - | 2 | - | |
| Center Wavelength | λc | nm | 445±20 | |||
| Spectral Width (FWHM) | △λ | nm | - | 6 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.1 | - | |
| Wavelength Shift with Current | △λ/△A | nm/A | - | 1 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 30 | - | |
| Threshold current | lth | A | - | 0.35 | - | |
| Operating current | lop | A | - | 3 | 3.5 | |
| Operating voltage | Vop | V | - | 52 | 60 | |
| Slope Efficiency | η | W/A | - | 18.5 | - | |
| Power Supply Mode | - | - | - | 2modules | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 105 | - |
| Numeric aperture | NA | NA | - | 0.22 | - | |
| Fiber length | Lf | m | - | 5.5 | - | |
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber termination | - | - | - | SMA905 | - | |
| Thermistor | Rt | (KΩ)/β(25℃) | - | 10±3%/3450 | - | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 30 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
|
|
