| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

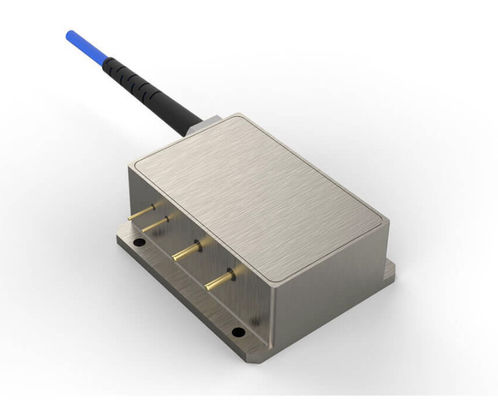

445nm 10W Fiber Coupled Diode Laser
Features:
Wavelength: 445nm±20nm
Output power: 10W
105µm/0.22NA
Applications:
Brittle material processing
|
Specifications(25℃)
|
Symbol
|
Unit
|
K445HMTFN-10.00WN1N | |||
| Minimum | Typical | Maximum | ||||
|
Optical Data |
CW Output Power |
Pbol |
W |
10 |
- |
- |
| Center Wavelength | λc | nm | 445±20 | |||
| Spectral Width (FWHM) | △λ |
nm |
- | 3 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.1 | - | |
| Wavelength Shift with Current | △λ/△A | nm/A | - | 1 | - | |
|
Electrical Data |
Electrical-to-Optical Efficiency | PE | % | 28 | - | |
| Threshold current | lth | A | - | 0.4 | - | |
| Operating current | lop | A | - | 3.5 | 4 | |
| Operating voltage | Vop | V | - |
13
|
15 | |
| Slope Efficiency | η | W/A | - | 4 | - | |
|
Fiber Data
|
Core Diameter | Dcore | μm | - | 105 | - |
| Cladding Diameter | Dclad | μm | - | 125 | - | |
| Numeric Aperture | NA | - | - | 0.22 | - | |
| Fiber Length | Lf | m | - | 5.5 | - | |
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber termination | - | - | - | SMA905 | - | |
| Thermistor | - | Rt | (KΩ)/β(25℃) | - | 10±3%/3450 | - |
|
Others |
ESD | Vesd | V | - | - | 500 |
|
Storage Temperature(2) |
Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
