| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

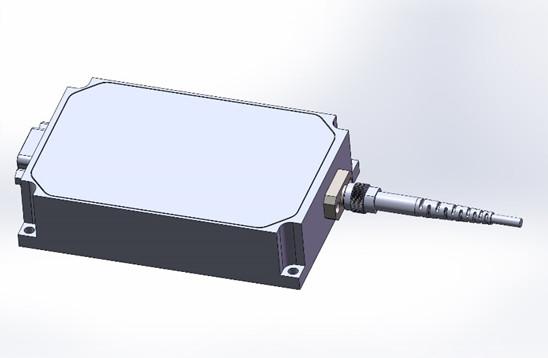

RGB Fiber Coupled High Power Diode Laser
Features:
455nm/525nm/638nm wavelength
2W/4W/4W output power
105µm fiber core diameter
0.22NA
Applications:
Laser Illumination
Smart Vision Lighting
Entertainment Lighting
The BWT RGB Laser has the advantage of compact size and good uniformity of beam power distribution.
| Specifications(25℃) | Symbol | Unit | KR004G004B004WHFN | ||||
| Minimum | Typical | Maximum | |||||
|
Optical Data
|
Red |
CW-Output Power | Po | W | 4 | - | - |
| Center Wavelength | λc | nm | 638±10 | ||||
|
Green |
CW-Output Power | Po | W | 4 | - | - | |
| Center Wavelength | λc | nm | 525±10 | ||||
|
Blue |
CW-Output Power | Po | W | 2 | - | - | |
| Center Wavelength | λc | nm | 455±10 | ||||
| Electrical Data |
Red |
Threshold Curent | lth | A | - | 0.34 | 0.44 |
| Operating Curent | lop | A | - | 1.3 | 1.6 | ||
| Operating Voltage | Vop | V | - | 11.5 | 13.5 | ||
|
Green |
Threshold Curent | lth | A | - | 0.3 | 0.5 | |
| Operating Curent | lop | A | - | 1.8 | 2.0 | ||
| Operating Voltage | Vop | V | - | 19 | 21 | ||
|
Blue |
Threshold Curent | lth | A | - | 0.4 | - | |
| Operating Curent | lop | A | - | 2.1 | 2.5 | ||
| Operating Voltage | Vop | V | - | 4.5 | 5 | ||
| Fiber Data | Core diameter | Dcore | µm | 400 | |||
| Numerical Aperture | NA | - | - | 0.22 | - | ||
| Fiber length | Lf | m | - | 1.5 | - | ||
| Fiber Loose Tubing Diameter | - | mm | 3mm | ||||
| Minimum Bending Radius | - | mm | 100 | - | - | ||
| Fiber Termination | - | - | FC(APC)/SC(APC)//SMA905/ST | ||||
| Thermistor | Resistance(25℃) | - | kΩ | 10+/-3% | |||
| Constant | - | k | 3380 | ||||
| Others | ESD | Vesd | V | - | 500 | ||
| Storage Temperature | Tstg | ℃ | -20 | - | 70 | ||
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | ||
| Lead Soldering Time | t | sec | - | - | 10 | ||
| Operating case temperature | Top | ℃ | 15 | - | 35 | ||
| Relative Humidity | RH | % | 15 | - | 75 | ||
|
|
