| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

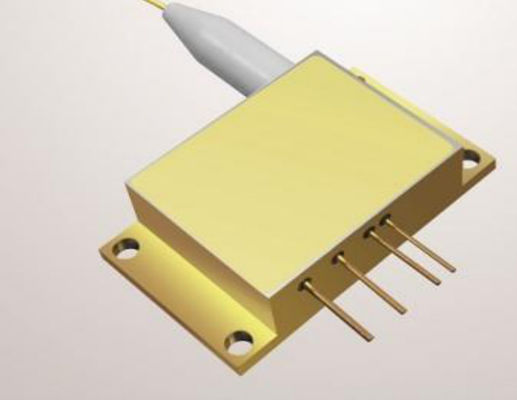

808nm 25W Fiber Coupled Diode Laser for Solid-state laser pumping, Medical use, Material processing
| Specifications(25℃) | Symbol | Unit | K808F02MN-15.00W | |||
| Minimum | Typical | Maximum | ||||
|
Parameter
|
CW-Output Power | Po | W | 15 | - | - |
| Center Wavelength | λc | nm |
808±3
|
|||
| Spectral width(FWHM) | △λ | nm | - | 3 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Wavelength Shift with | △λ/△A | nm/A | - | 0.6 | - | |
Electrical
Data
|
Electrical-to-Optical Efficiency
|
PE | % | - | 48 | - |
|
Threshold Current |
Ith
|
A | - | 1.8 | - | |
| Operating Current
|
Iop | A | - | 10 | 11 | |
|
Operating Voltage
|
Vop | V | - | - | 6 | |
| Slope Efficiency |
η
|
W/A | - | 3 | - | |
| Fiber Data | Core diameter | Dcore | µm | - | 400 | - |
|
Cladding Diameter
|
Dclad | µm | 440 | |||
|
Fiber Loose Tubing Diameter
|
mm | 3.0 | ||||
| Numerical Aperture | NA | NA | - | 0.22 | - | |
| Fiber length | Lf | m | - | 1.5 | - | |
|
Minimum Bending Radius
|
- | mm | 176 | - | - | |
|
Fiber Termination
|
- | - | - | SMA905 | - | |
|
Feedback
Isolation
|
Wavelength Range
|
λ | nm | 1020~1200 | ||
|
Isolation
|
- | dB | - | 30 | - | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage Temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Tempreature | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
|
|
